GE current

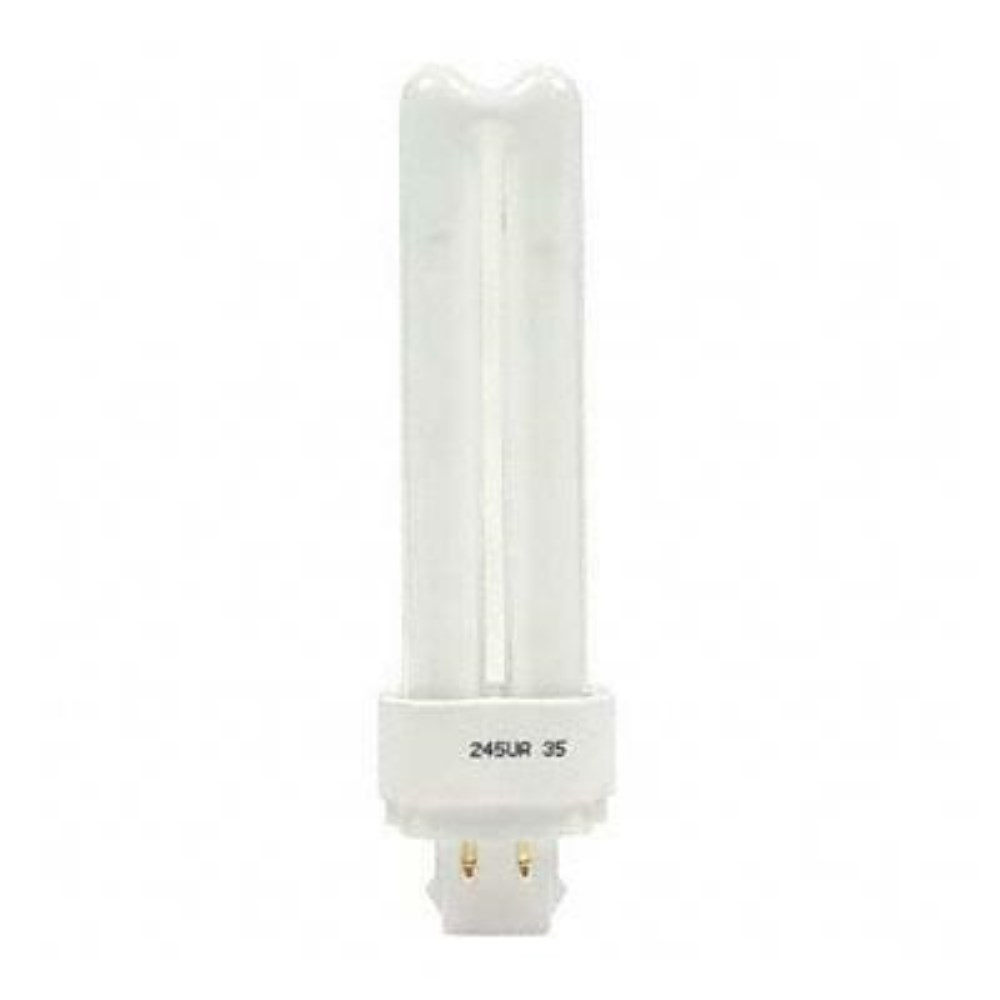

LAMP FLUO COMPACT T4 BASE G24Q-1 13W 2 TUBES 3500K

GEE-97596 MFG #: 97596
F13DBX835ECO4P_1 - b3fbf7cc-948f-4d98-a6fa-4c3925f98069.jpg
  • Best Seller: No
  • Country Origin: HUN
  • Dangerous Goods: No
  • Diameter: 0.5" (12.7 mm)
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Lamp Average Life: 17000
  • Lamp Base Type: G24q-1: CFL 4 Pin Triple Tube Base 600V 75W
  • Lamp Shape: T4
  • Lamp Type: Compact Fluorescent
  • Limited Quantity: No
  • Lumens: 900
  • Made in Canada: No
  • Manufacturer: GENERATION LIGHTING (VISUAL COMFORT &CO)
  • Manufacturer Category: COMPACT FLUORESCENT
  • Manufacturer Product Code: 97596
  • Mfr Vendor ID: 527
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 677190
  • Unit of Measure: E
  • UPC: 754473975968
  • Wattage: 13
  • Web Group: 1090300000000
97596 - F13DBX/835/ECO4P
GE Ecolux® Biax® T4 - Facilities; Retail Display; Hospitality; Office; Restaurant; Warehouse

GENERAL CHARACTERISTICS
Lamp Type Compact Fluorescent - PlugIn
Bulb T4
Base G24q-1
Equivalent Wattage (NOM) 60.0 W
Rated Life (NOM) 17000.0/20000.0 h
Starting Temperature (MIN) 0.0 °C
Cathode Resistance (NOM) 10.5 Ohm
Mercury Content (NOM) 3.0 mg
Picograms of Mercury (NOM) 198.6755 pg
Additional Info Dimmable with appropriate dimming ballast./End of Life Protection (EOL)/TCLP compliant
Primary Application Facilities;Retail
Display;Hospitality;Office;Restaurant;Warehouse

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (NOM) 900.0
Mean Lumens (NOM) 755.0
Nominal Initial Lumens per Watt (NOM) 69.23077
Color Temperature (NOM) 3500.0 K
Color Rendering Index (CRI) (NOM) 82.0

ELECTRICAL CHARACTERISTICS
Wattage (NOM) 13.0
Voltage (NOM) 91.0
Current (max) (NOM) 5.25 A
Open Circuit Voltage (after preheating) (MAX) 190.0 V
Open Circuit Voltage Across
Starter (MIN) 198.0 V
Lamp Current (NOM) 0.175 A
Preheat Voltage (MIN) 4.25 V
Current Crest Factor (MAX) 1.7
Supply Current Frequency (NOM) 60.0 Hz

DIMENSIONS
Maximum Overall Length (MOL) (NOM) 4.900 in(124.5 mm)
Nominal Length (NOM) 5.000 in(127.0 mm)
Base Face to Top of Lamp (NOM) 4.400 in(111.8 mm)

PRODUCT INFORMATION
Product Code 97596
Description F13DBX/835/ECO4P
ANSI Code 60901-IEC-2513-2
Standard Package BUNDLE
Standard Package GTIN
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 50
UPC 043168975964
