Nexans

WIRE ALARM 5C18 PVC X300M

WIRE-SECUREX5C18X300

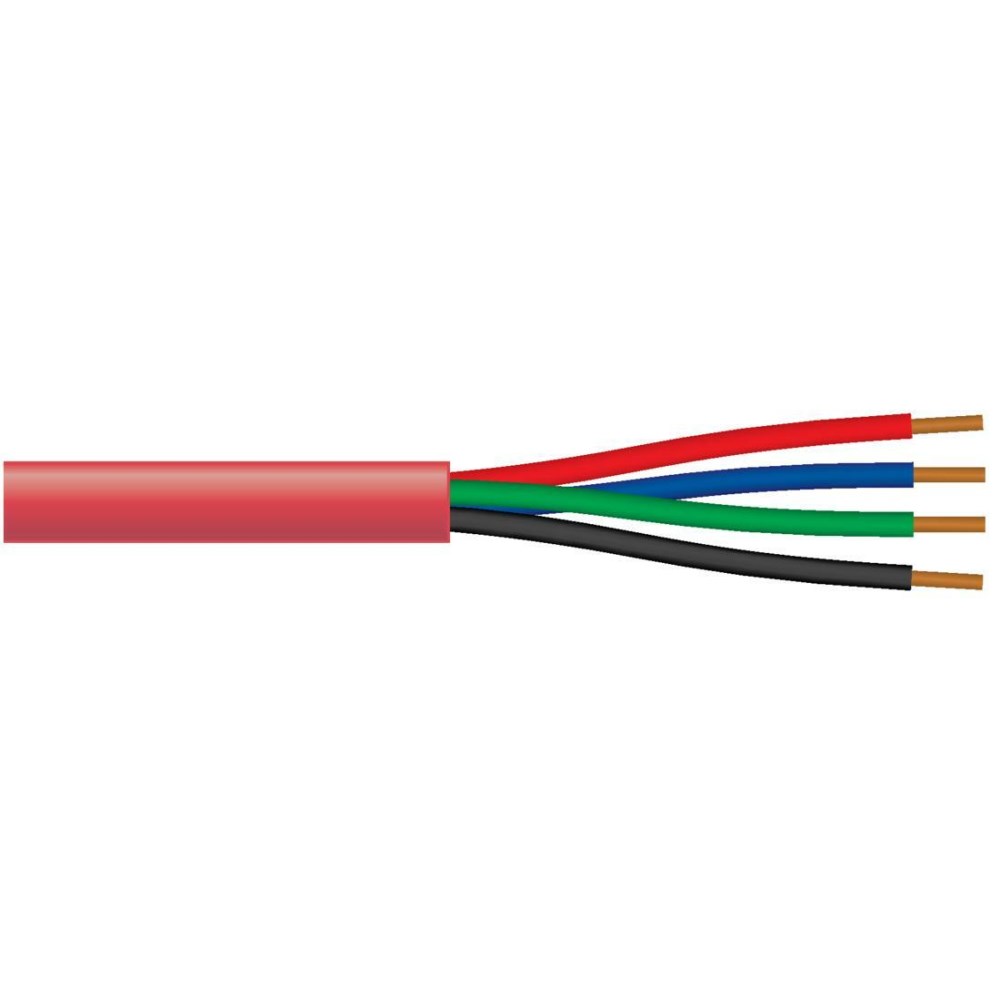

SECUREX5C18X300_1 - 2b0fd51e-2534-4a6a-bf75-fb18f2241c74.jpg
  • Business Unit: Guillevin, Choice & Safety
  • Conductor Material: Copper
  • Diameter: 0.25" (6.35 mm)
  • Direct Burial: No
  • Enabled: Yes
  • Flame Spread Rating: FT4
  • Inner Insulation Material: PVC
  • Jacket Material: PVC
  • Manufacturer: WIRE
  • Manufacturer Catalogue: SECUREX5C18X300
  • Manufacturer Category: SECUREX
  • Manufacturer Product Code: 12002551
  • Maximum Operating Temperature: 105
  • Maximum Operating Voltage: 300
  • Mfr Vendor ID: 554
  • Number of Conductors: 5
  • Overhead Installation: No
  • Packing Type: Reel
  • Restricted Shipping: Yes
  • Special Attributes: Restricted Shipping
  • SPF Product ID: 762830
  • Unique Item Code: WIRE-SECUREX5C18X300
  • Unit of Measure: M
  • UPC: 97036000012
  • Web Group: 1100900000000
  • Wet Location: No
  • Wire And Cable Type: Fire Alarm
  • Wire Gauge: 18
Solid or stranded
Soft bare copper conductors.
105°C, 300 Volts.
RoHS

APPLICATIONS
For use in wiring low voltage heating and air conditioning controls, bell and annunciator systems. For use in damp or dry locations.

SPECIFICATIONS
• CSA Spec. C22.2, No. 35
• File Listing: LL90458
