WIRE AC90 (BX) 2C#12 600V X150M

WIRE-AC2C12X150 MFG #: 12000495
  • Armor Material: Aluminum
  • Best Seller: Yes
  • Conductor Material: Copper
  • Diameter: 0.51" (12.954 mm)
  • Direct Burial: No
  • Enabled: Yes
  • Flame Spread Rating: FT4
  • Inner Insulation Material: Polyethylene
  • Jacket Material: PVC
  • Manufacturer: WIRE
  • Manufacturer Catalogue: AC2C12X150
  • Manufacturer Category: AC90 PRICED WEEKLY
  • Manufacturer Product Code: 12000495
  • Maximum Operating Temperature: 90
  • Maximum Operating Voltage: 600
  • Mfr Vendor ID: 554
  • Minimum Operating Temperature: -40
  • Number of Conductors: 2
  • Overhead Installation: No
  • Packing Type: Reel
  • Restricted Shipping: Yes
  • Special Attributes: Best Seller, Restricted Shipping
  • SPF Product ID: 762184
  • Standards: CSA
  • Unit of Measure: M
  • UPC: 97021000007
  • Web Group: 1100100000000
  • Wet Location: No
  • Wire And Cable Type: AC90
  • Wire Gauge: 12

CSA File #LL23462 Class 5811 01

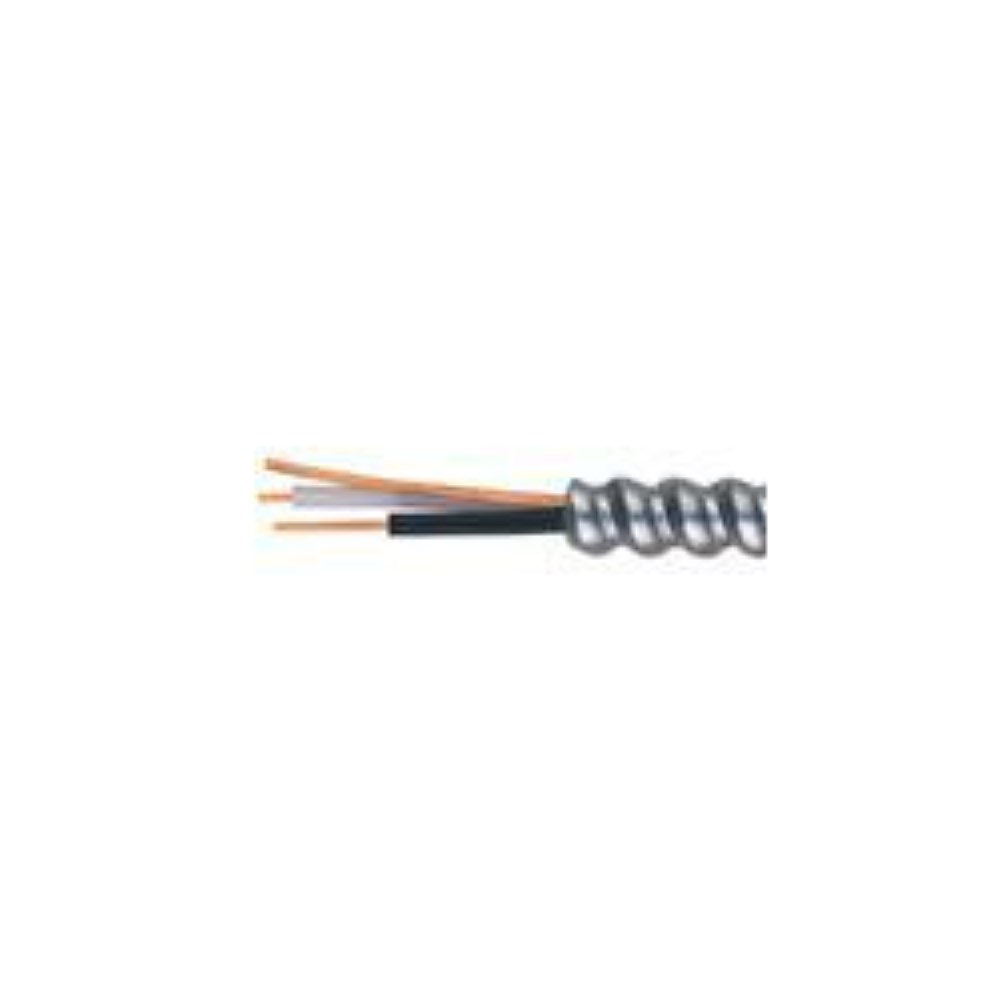

Two copper conductor material (ACM) conductors with low temperature EXELENE* cross-linked polyethylene insulation (RW90 XLPE) and
bare copper bonding wire. Conductor assembly paper wrapped and covered with bare interlocked aluminum armour. Rated 600 volts. LEAD FREE
and RoHS compliant. Limited Smoke Zero Halogen - CSA rated ST1 per CSA 22.2 No. 2556. Meets the FT4 flame spread test.

For open and concealed wiring in dry locations only.
For use in cabletroughs and ventilated flexible cableways in dry locations only.
Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
Maximum conductor temperature 90°C. Approved for use with ceiling fixtures.

Construction characteristics
Conductor material Copper

Electrical characteristics
Maximum operating voltage 600 V

Usage characteristics
Maximum operating temperature 90 °C
