Schneider Electric

RELAY 10A 600V 3NO 2NC CONTACT 120VDC COIL OPEN TYPE

SCH-CAD32GD MFG #: CAD32GD

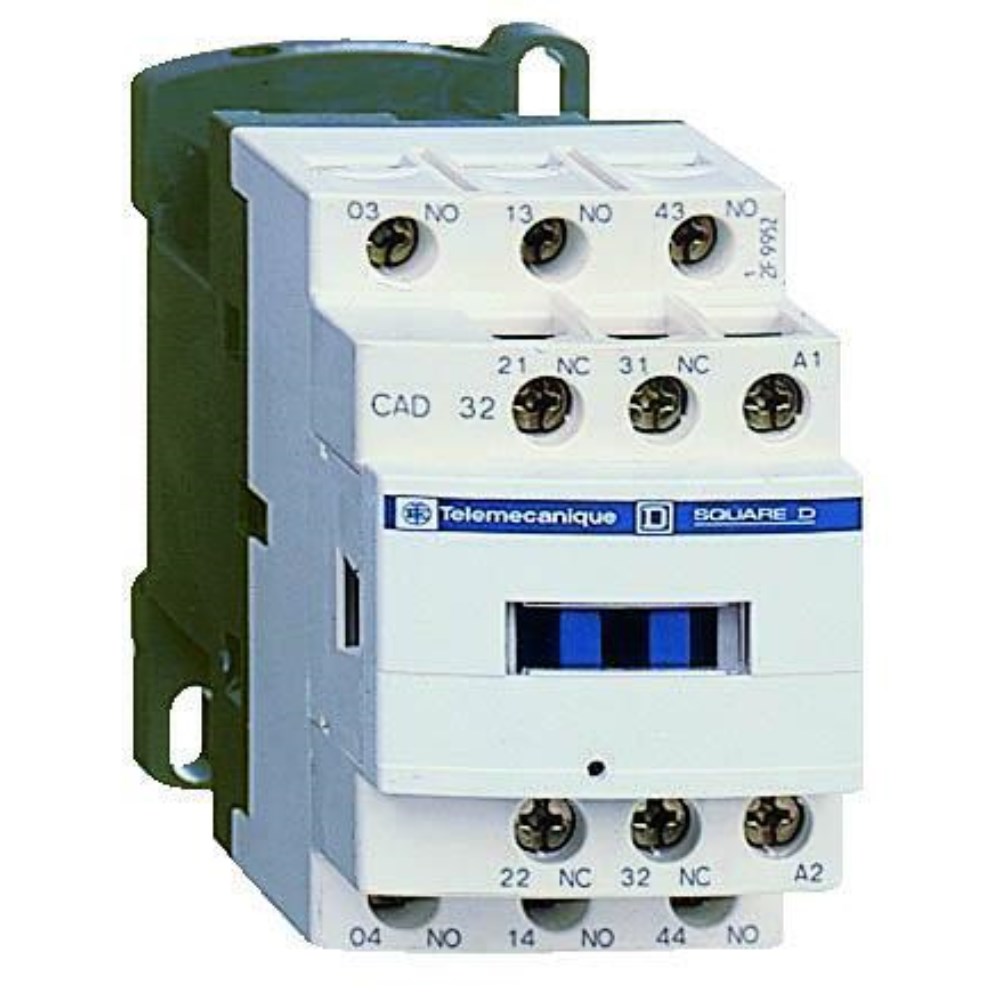

CAD32GD_1 - 4c8f9be0-7ae7-4981-8ab3-c0a275a64c92.jpg
  • Amperage: 10
  • Best Seller: No
  • Brand: TeSys Contactors & relays SE
  • Coil Voltage: 120VDC
  • Contact Arrangement: 3NO/2NC
  • Country Origin: FR
  • Dangerous Goods: No
  • Device Type: Control Relay
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Limited Quantity: No
  • Made in Canada: No
  • Manufacturer: SCHNEIDER ELECTRIC
  • Manufacturer Category: TE3B-30676
  • Manufacturer Product Code: 20485
  • Mfr Vendor ID: 599
  • NEMA Rating: OPEN
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 135595
  • Unit of Measure: E
  • UPC: 785901204855
  • Voltage: 600
  • Web Group: 1020905000000
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 125V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
