SCH-9050JCK60V14 MFG #: 9050JCK60V14
  • Best Seller: No
  • Country Origin: US
  • Dangerous Goods: No
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Limited Quantity: No
  • Made in Canada: No
  • Manufacturer: SCHNEIDER ELECTRIC
  • Manufacturer Category: 0SQ5-30206
  • Manufacturer Product Code: 0SQ5-30206
  • Mfr Vendor ID: 599
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 131757
  • Unit of Measure: E
  • UPC: 785901053873
  • Web Group: 1020904000000

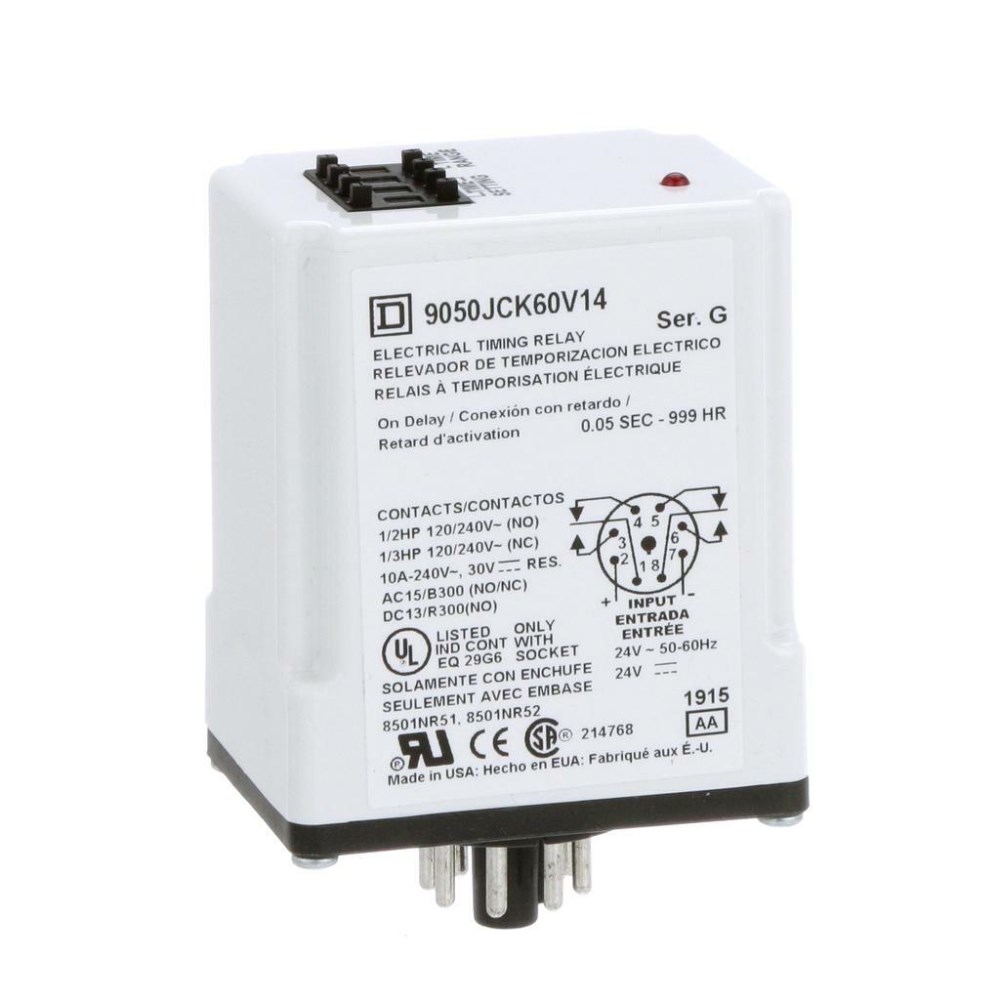

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the input voltage is removed, contacts return to their shelf state. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 24 VAC/VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
