Schneider Electric

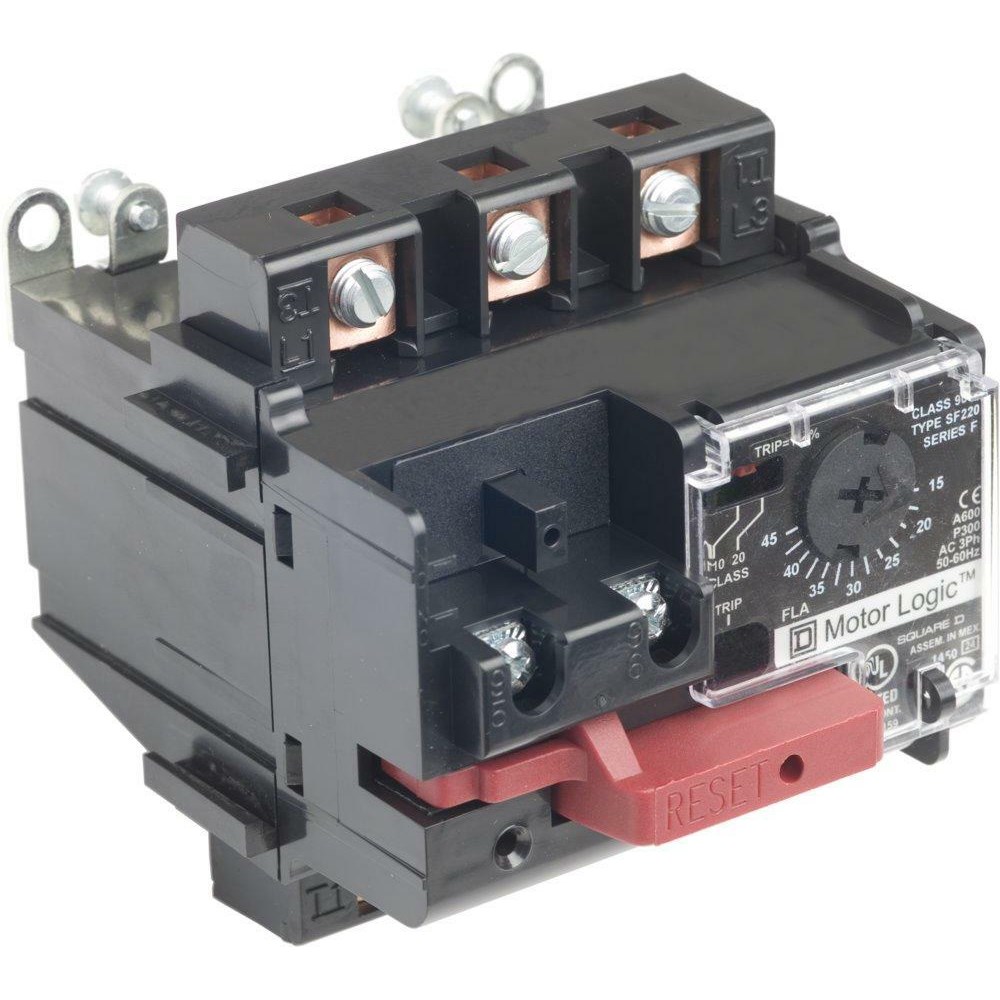

OVERLOAD RELAY SOLID STATE 15-45A SIZE 2 600VAC

SCH-9065SF220 MFG #: 9065SF220
9065SF220_1 - b43585c6-d67c-4da3-8afd-883ace06e07c.jpg
  • Amperage: 15-45
  • Best Seller: No
  • Country Origin: US
  • Dangerous Goods: No
  • Device Type: Overload Relay
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Limited Quantity: No
  • Made in Canada: No
  • Manufacturer: SCHNEIDER ELECTRIC
  • Manufacturer Category: SQ2T-30209
  • Manufacturer Product Code: 75000
  • Mfr Vendor ID: 599
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 131858
  • Unit of Measure: E
  • UPC: 785901750000
  • Voltage: 600
  • Web Group: 1020901000000
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 2 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 15A to 45A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. This overload relay is 3.51 inches tall, 4.28 inches wide and 3.51 inches deep. Relay weighs 3.51 lbs. Motor Logic SSOLR are UL listed and CSA certified.
