ILSCO Canada

LUG MECHANICAL 1C #2 TO #14 CU/AL 1/4" HOLE

ILS-TA-2
TA2_1 - 99892e58-9cce-423e-b6a2-117677068683.jpg
  • Bolt Size: 1/4"
  • Carton Quantity: 100
  • Conductor Material: CU/AL
  • Enabled: Yes
  • Lug Number of Bolt Holes: 1
  • Lug or Terminal Application / Type: Mechanical
  • Lug Range From: 2
  • Lug Range To: 2
  • Lugs Number of Conductors: 1
  • Manufacturer: ILSCO
  • Manufacturer Catalogue: TA-2
  • Mfr Vendor ID: 183
  • SPF Product ID: 552756
  • Unit of Measure: E
  • UPC: 78366988774
  • Web Group: 1060306030000

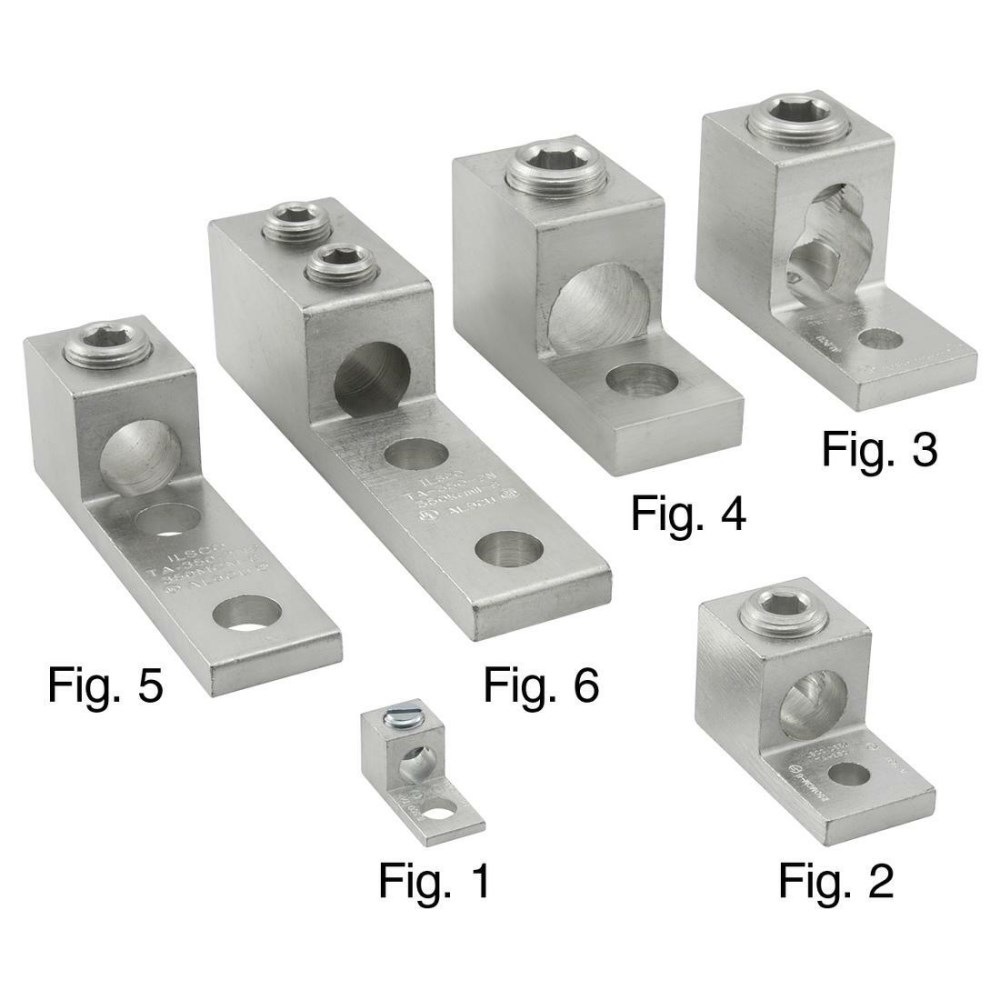

TA Aluminum Mechanical Lugs Dual Rated - One Conductor



  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-tin plated
  • Chamfered wire entry
  • UL Listed and CSA Certified for 2000 volts, 90° C
