GE current

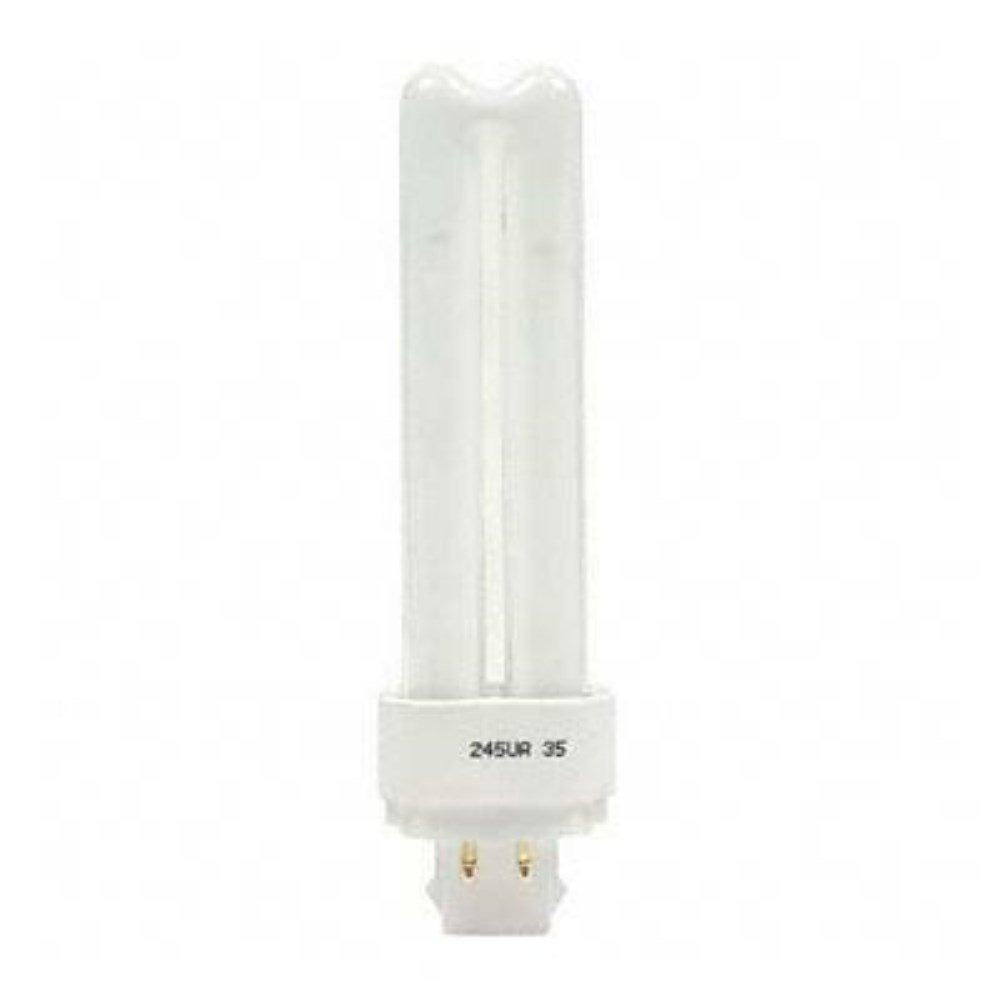

LAMP FLUO COMPACT T4 BASE G24Q-1 13W 2 TUBES 2700K

GEE-97594 MFG #: 97594
F13DBX827ECO4P_1 - 36b8300b-12e2-493a-b7c8-2e0be9a9924d.jpg
  • Best Seller: No
  • Country Origin: HUN
  • Dangerous Goods: No
  • Diameter: 0.5" (12.7 mm)
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Lamp Average Life: 17000
  • Lamp Base Type: G24q-1: CFL 4 Pin Triple Tube Base 600V 75W
  • Lamp Color Temperature: 2700
  • Lamp Shape: T4
  • Lamp Type: Compact Fluorescent
  • Length: 5" (127 mm)
  • Limited Quantity: No
  • Lumens: 900
  • Made in Canada: No
  • Manufacturer: GENERATION LIGHTING (VISUAL COMFORT &CO)
  • Manufacturer Category: COMPACT FLUORESCENT
  • Manufacturer Product Code: 97594
  • Mfr Vendor ID: 527
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 677186
  • Unit of Measure: E
  • UPC: 754473975944
  • Wattage: 13
  • Web Group: 1090303000000
97594 - F13DBX/827/ECO4P
GE Ecolux® Biax® T4 - Facilities; Retail Display; Hospitality; Office; Restaurant; Warehouse

GENERAL CHARACTERISTICS
Lamp Type Compact Fluorescent - PlugIn
Bulb T4
Base G24q-1
Equivalent Wattage (NOM) 60.0 W
Rated Life (NOM) 17000.0/20000.0 h
Starting Temperature (MIN) 0.0 °C
Cathode Resistance (NOM) 10.5 Ohm
Mercury Content (NOM) 3.0 mg
Picograms of Mercury (NOM) 198.6755 pg
Additional Info Dimmable with appropriate dimming ballast./End of Life Protection (EOL)/TCLP compliant
Primary Application Facilities;Retail
Display;Hospitality;Office;Restaurant;Warehouse

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (NOM) 900.0
Mean Lumens (NOM) 755.0
Nominal Initial Lumens per Watt (NOM) 69.23077
Color Temperature (NOM) 2700.0 K
Color Rendering Index (CRI) (NOM) 82.0

ELECTRICAL CHARACTERISTICS
Wattage (NOM) 13.0
Current (max) (NOM) 5.25 A
Open Circuit Voltage (after preheating) (MAX) 190.0 V
Open Circuit Voltage Across
Starter (MIN) 198.0 V
Lamp Current (NOM) 0.175 A
Preheat Voltage (MIN) 4.25 V

DIMENSIONS
Maximum Overall Length (MOL) (NOM) 5.000 in(127.0 mm)
Nominal Length (NOM) 5.000 in(127.0 mm)
Bulb Diameter (DIA) (NOM) 0.406 in(10.3 mm)

PRODUCT INFORMATION
Product Code 97594
Description F13DBX/827/ECO4P
ANSI Code 60501-IEC-2513-2
Standard Package BUNDLE
Standard Package GTIN
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 50
UPC 043168975940
