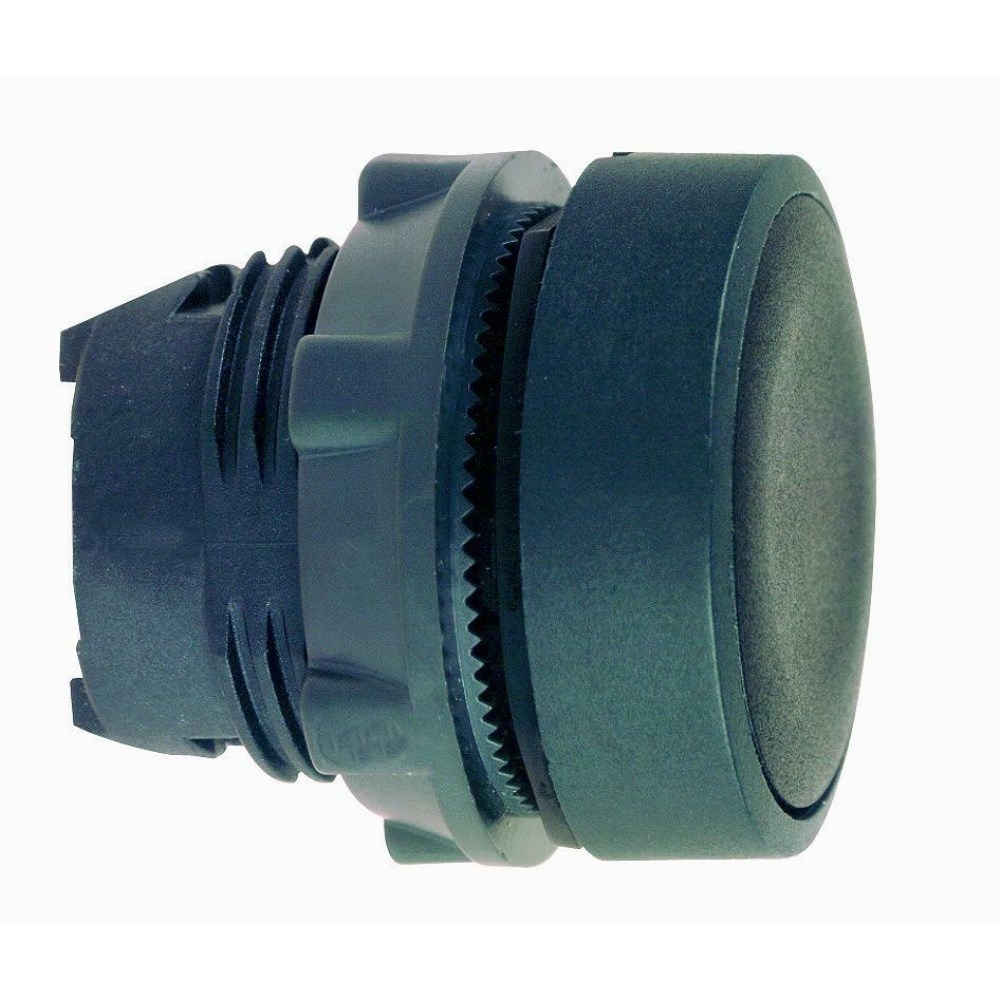

HEAD OPERATING FOR 22MM PUSHBUTTON FLUSH BLACK

SCH-ZB5AA2
  • Carton Quantity: 1
  • Country Origin: MX
  • Diameter: 0.8661" (21.9989 mm)
  • Enabled: Yes
  • Manufacturer: SCHNEIDER ELECTRIC
  • Manufacturer Catalogue: ZB5AA2
  • Manufacturer Category: TE6-31015-A
  • Manufacturer Product Code: 35531
  • Mfr Vendor ID: 599
  • Operator Interface Component Type: Operator
  • Operator Interface Feature: Flush Head
  • SPF Product ID: 153437
  • Unit of Measure: E
  • Unit Quantity: 1
  • UNSPSC: 39122216
  • UPC: 785901355311
  • Web Group: 1020601000000
Round head for pushbutton Ø 22 - spring return - black - flush - unmarked

Main
Range of product Harmony XB5,
Product or component type Head for pushbutton
Device short name ZB5
Bezel material Plastic
Mounting diameter 22 mm
Sale per indivisible quantity 1
IP degree of protection IP66 IEC 60529
Type of operator Spring return
Operator profile Flush black unmarked

Complementary
Product weight 0,018 kg
Resistance to high pressure washer 7000000 Pa 55 °C 0.1 m
Shape of signaling unit head Round
Mechanical durability 5000000 cycles

Environment
Protective treatment TH
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -25...70 °C
Class of protection against electric shock Class II IEC 60536
NEMA degree of protection NEMA 13, NEMA 4X
IK degree of protection IK03 IEC 50102

Standards
CSA C22-2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508

Product certifications
BV
CSA
DNV (Det Norske Veritas)
GL
LROS (Lloyds register of shipping)
RINA
UL listed

Vibration resistance 5 gn 2...500 Hz IEC 60068-2-6
Shock resistance 30 gn 18 ms half sine wave acceleration IEC 60068-2-27
50 gn 11 ms half sine wave acceleration IEC 60068-2-27
RoHS EUR conformity date 0646
RoHS EUR status Compliant
