SCH-ZB5AT8643M MFG #: ZB5AT8643M
  • Country Origin: CZ
  • Manufacturer: SCHNEIDER ELECTRIC
  • Manufacturer Category: TE6-31015
  • Manufacturer Product Code: 0TE6-31015
  • Mfr Vendor ID: 599
  • Operator Interface Component Type: Operator
  • Operator Interface Feature: Illuminated, Mushroom Head, Push Pull
  • SPF Product ID: 153652
  • Switch Positions: Maintained
  • Unit of Measure: E
  • UNSPSC: 39122216
  • UPC: 785901474449
  • Web Group: 1020601000000
Range of product Harmony XALF, Harmony XB5

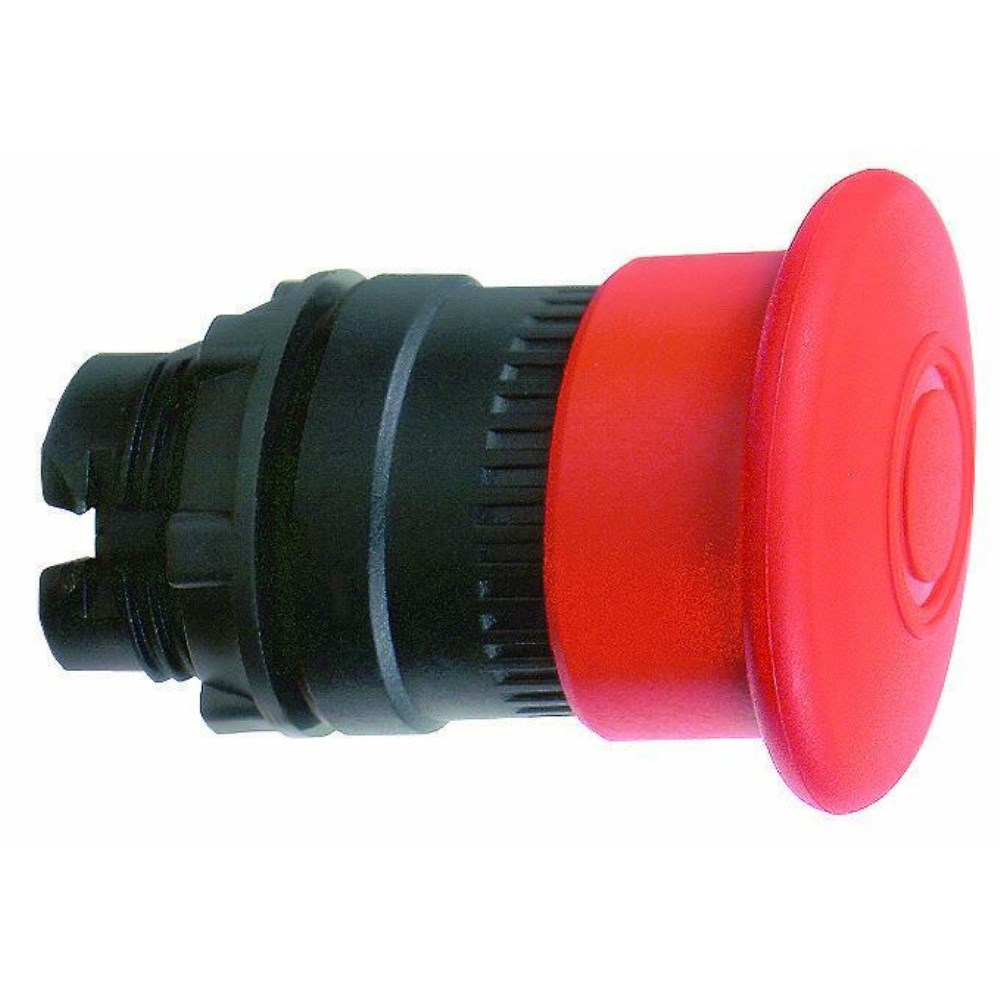

Product or component type Head for illuminated emergency stop pushbutton
Device short name ZB5
Bezel material Plastic
Mounting diameter 22 mm
Sale per indivisible quantity 1
IP degree of protection IP54 IEC 60529
Shape of signaling unit head Round
Type of operator Trigger action and mechanical latching with mechanical state indicator
Operator profile Mushroom Ø 40 mm red

Product weight 0,034 kg
Resistance to high pressure washer 7000000 Pa 55 °C 0.1 m
Reset Push-pull
Mechanical durability 300000 cycles

Protective treatment TH
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -25...70 °C
Class of protection against electric shock Class II IEC 60536
NEMA degree of protection NEMA 13, NEMA 4X
IK degree of protection IK05 IEC 50102
Standards CSA C22-2 No 14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, JIS C 4520, UL 508
Product certifications BV, CSA, DNV (Det Norske Veritas), GL, LROS, RINA, UL listed
Vibration resistance 5 gn 2...500 Hz IEC 60068-2-6
Shock resistance 30 gn 18 ms half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms half sine wave acceleration IEC 60068-2-27
RoHS EUR conformity date 0914
RoHS EUR status Compliant
