MTC-MO250V MFG #: MO250V
  • Business Unit: Guillevin, Choice
  • GIC Enabled: Yes
  • Manufacturer: MARCUS TRANSFORMER
  • Manufacturer Catalogue: MO250V
  • Manufacturer Category: CONTROL
  • Mfr Vendor ID: 252
  • NEMA Rating: OPEN
  • Phase: 1
  • Primary Voltage: 600
  • Secondary Voltage: 120
  • SPF Product ID: 190448
  • Transformer Type: Control, Open
  • Unique Item Code: MTC-MO250V
  • Unit of Measure: E
  • UPC: 755658301589
  • VA Rating: 250
  • Web Group: 1080601050000
  • Winding Material: Copper

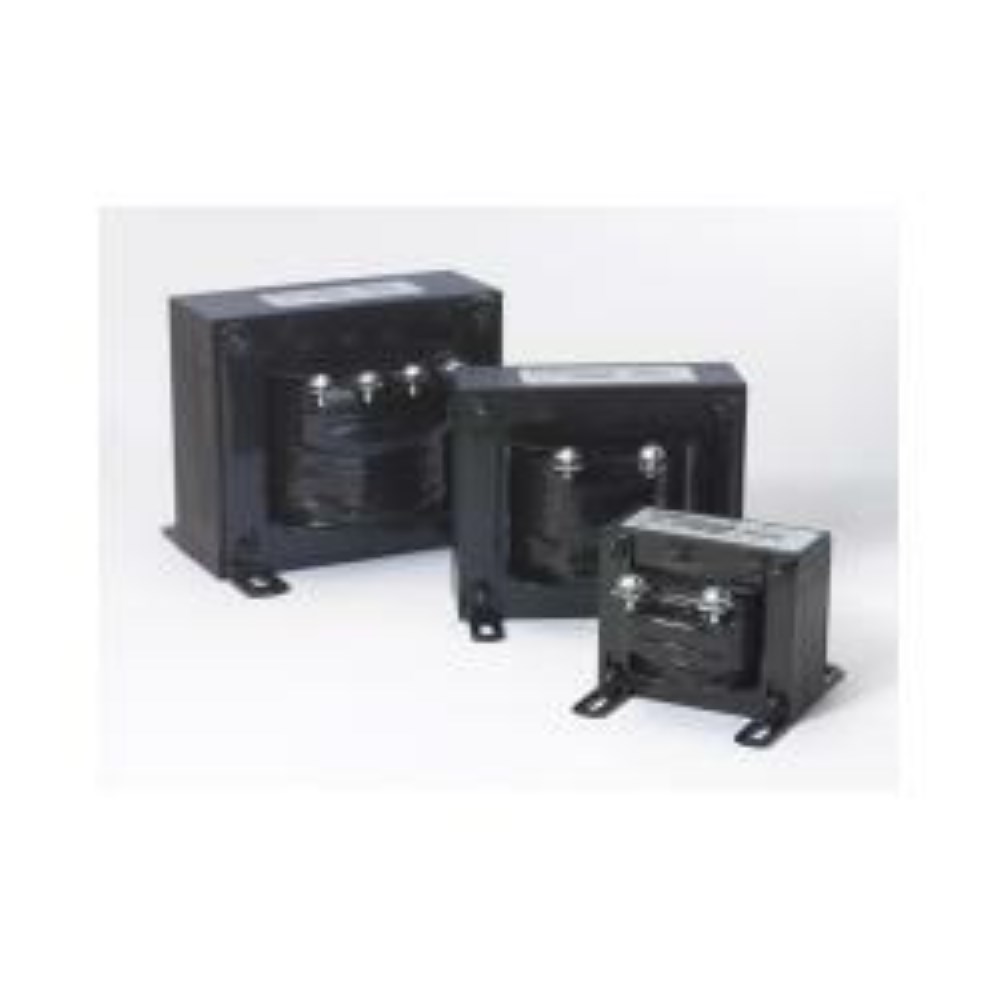

MO - Single Phase Open Style Industrial Control Transformer

Solidly fixed terminals with standard combination screw connections
facilitate wiring
All models built with heat-proof insulation for compact size and long life

A ll terminals clearly identified with additive polarity markings
Many multi-voltage primary and secondary models increase range of
applications per unit
Every coil bobbin-wound for greater efficency and superior heat evacuation
Can be mounted either vertically or horizontally
All units CSA Certified & UL Listed
CE verified up to and including 5000 VA
