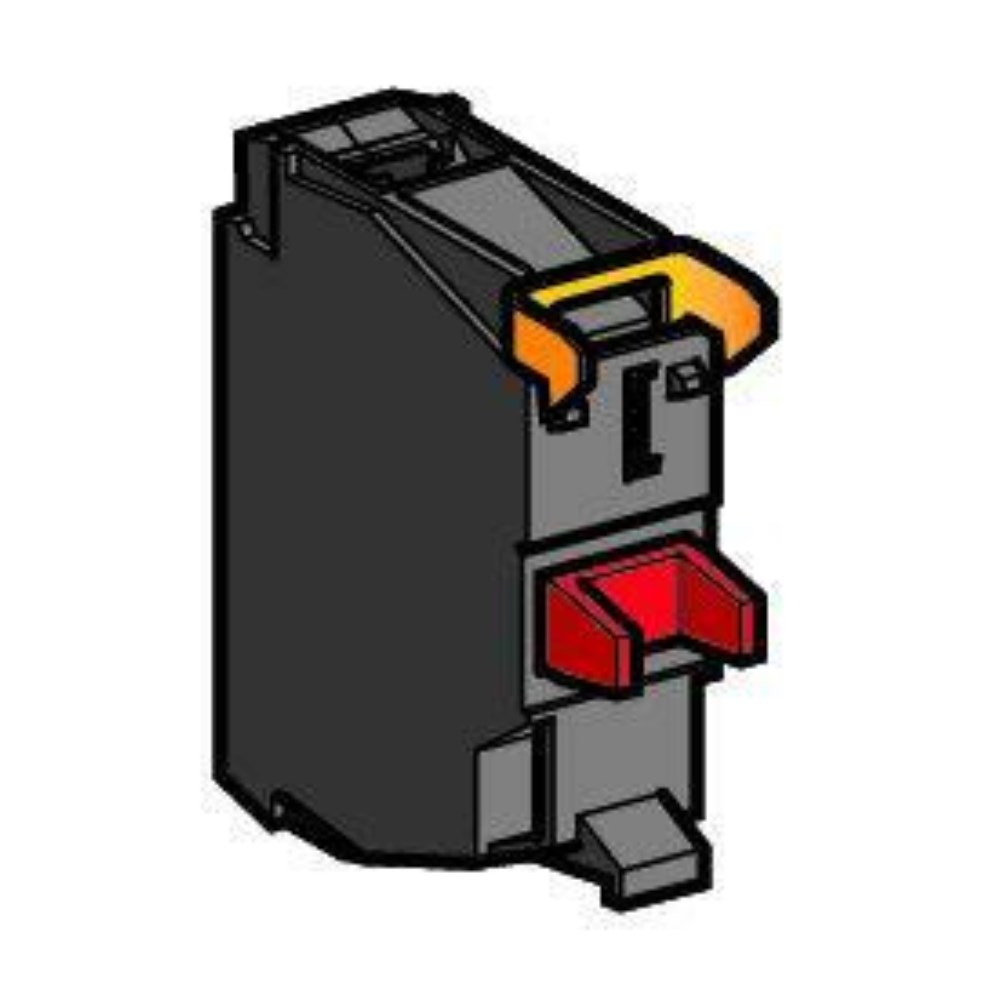

CONTACT BLOCK 1NC ADD-ON FOR 22MM PUSHBUTTON/SW/BULK

SCH-ZBE102TQ
  • Carton Quantity: 1
  • Country Origin: FR
  • Diameter: 0.8661" (21.9989 mm)
  • Enabled: Yes
  • Manufacturer: SCHNEIDER ELECTRIC
  • Manufacturer Catalogue: ZBE102TQ
  • Manufacturer Category: TE6-31015-A
  • Manufacturer Product Code: 53862
  • Mfr Vendor ID: 599
  • Operator Interface Component Type: Contact Block
  • SPF Product ID: 154469
  • Unit of Measure: E
  • Unit Quantity: 1
  • UNSPSC: 39122216
  • UPC: 785901538622
  • Web Group: 1020601000000
control button contact block - ZBE Ø 22 - 1 NC - screw clamp terminals

Main
Range of product: Harmony XB4, Harmony XB5
Product or component type: Contact block
Device short name: ZBE
Sale per indivisible quantity: 100
Contact block type: Single

Complementary
Contacts type and composition: 1 NC
Contact operation: Slow-break
Contacts usage: Standard contacts
Positive opening With: EN/IEC 60947-5-1 appendix K
Operating travel: 1,5 mm NC changing electrical state 4,3 mm total travel
Operating force: 2 N NC changing electrical state
Mechanical durability: 5000000 cycles
Connections - terminals: Screw clamp terminals >= 1 x 0.22 mm² without cable end EN 60947-1, Screw clamp terminals <= 2 x 1.5 mm² with cable end EN 60947-1
Tightening torque: 0,8...1,2 N.m EN 60947-1
Shape of screw head: Cross pozidriv No 1, Cross Philips no 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material: Silver alloy (Ag/Ni)
Short circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3 EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN 60947-1
[Ie] rated operational current: 0,1 A 600 V DC-13 Q600 EN/IEC 60947-5-1, 0,27 A 250 V DC-13 Q600 EN/IEC 60947-5-1, 0,55 A 125 V DC-13 Q600 EN/IEC 60947-5-1, 1,2 A 600 V AC-15 A600 EN/IEC 60947-5-1, 3 A 240 V AC-15 A600 EN/IEC 60947-5-1, 6 A 120 V AC-15 A600 EN/IEC 60947-5-1
Electrical durability 1000000 cycles AC-15 4 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C, 1000000 cycles AC-15 3 A 120 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C, 1000000 cycles AC-15 2 A 230 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C, 1000000 cycles DC-13 0,5 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C, 1000000 cycles DC-13 0,2 A 110 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
Electrical reliability IEC 60947-5-4: Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Environment
Protective treatment: TH
Ambient air temperature for storage: -40...70 °C
Ambient air temperature for operation:-25...70 °C
IP degree of protection: IP20 IEC 60529
Standards: CSA C22-2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508
Product certifications: BV, CSA, DNV (Det Norske Veritas), GL, LROS, RINA, UL
Vibration resistance: 5 gn 2...500 Hz IEC 60068-2-6
Shock resistance: 30 gn 18 ms half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms half sine wave acceleration IEC 60068-2-27
RoHS EUR conformity date: 0727
RoHS EUR status: Compliant
