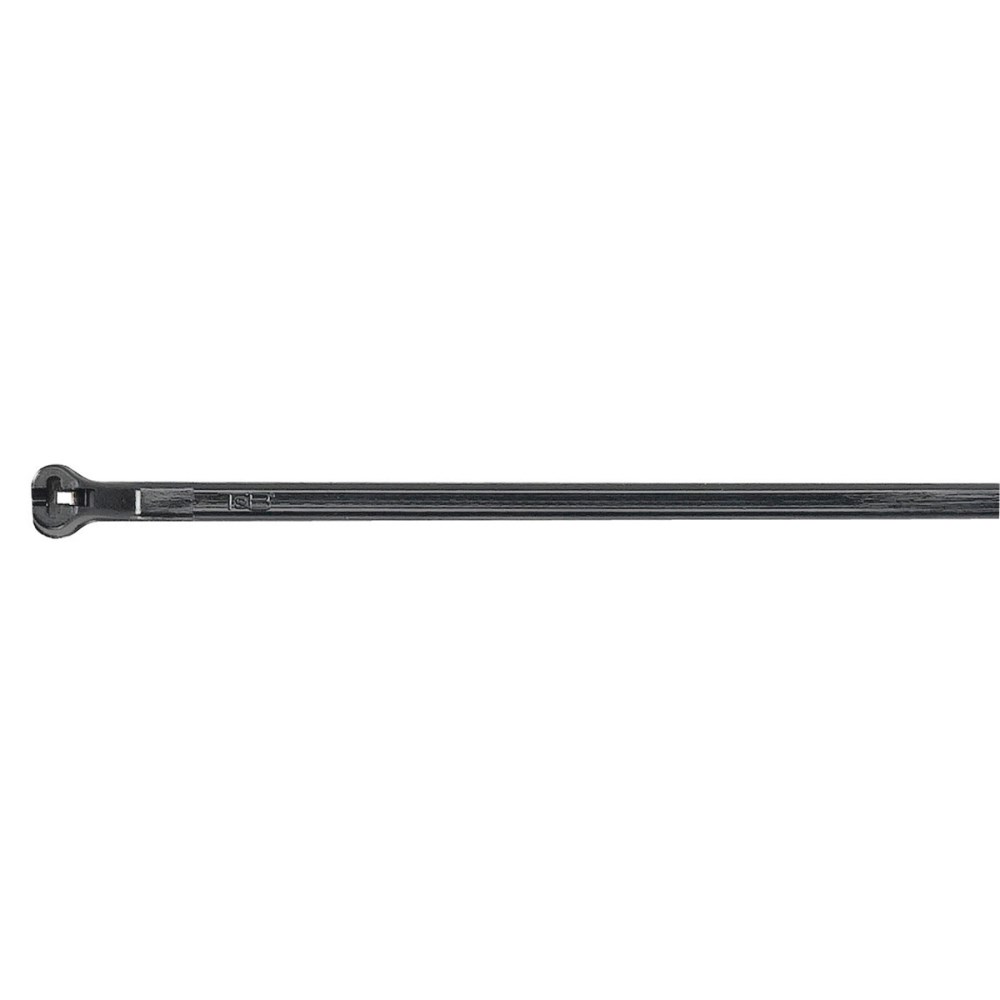

CABLE TIE 24.30IN X 0.270IN W 120LB NYLON UV BLACK

TAB-TY5277MX
  • Bundle Diameter: Max 6.97 in
  • Carton Quantity: 50
  • Country Origin: US
  • Enabled: Yes
  • Length: 24.3" (617.22 mm)
  • Manufacturer: THOMAS & BETTS
  • Manufacturer Catalogue: TY5277MX
  • Manufacturer Category: TR
  • Material: Nylon
  • Mfr Vendor ID: 386
  • SPF Product ID: 39183
  • Thickness: 0.06
  • Unit of Measure: C
  • Unit Quantity: 50
  • UNSPSC: 39121703
  • UPC: 78621087086
  • Web Group: 3150900000000
  • Width: 0.27" (6.858 mm)
Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (221 F), Weather and Ultraviolet Resistant Polyamide for Indoor or Outdoor Applications, UL/EN/ CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 617mm (24.3 inches), Width of 7.0mm (0.27 inches), Thickness of 1.6mm (0.06 inches), Tensile Strength Rating of 540 Newtons (120 Pounds)
• Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
• Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
• The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
• Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and tippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
• Application Tools: ERG120, WT197

North American Specifications (UNSPSC)
UNSPSC 39121703 Cable ties
IGCC 5037 Cable Ties & Wraps
Brand Name Ty-Rap
Type Standard

Special Features
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads.
Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.

Width 0.27 Inches/7.0mm
Length 24.3 Inches/617mm
Thickness 0.06 Inches/1.6mm
Bundle Diameter 0.236 Inches/6mm-6.96 Inches/177mm
Material Nylon/Polyamide 6.6
Color Black
Lock Mechanism Double Locking Head
Tensile Strength 120 Pounds/530 Newtons

European Specifications (ETIM)
ETIM EC000046 Cable tie
Band width 7mm
Length belt/tape/tie 617mm
Tie thickness 1.6mm
Max. bundle diameter 177mm
Min. holding force 540N
Operating temperature -40-+105°C
Model Internal toothing
Band closure Double lock head
Material Plastic
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Black
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
Type of fastening None
VG approval N
MIL approval N
UL approval Y

Packaging
Inner Quantity 50
Inner Dimensions (inches) 29x6x1.75
Outer Quantity 500
Outer Dimensions (inches) 32.2x9.35x5.8
Weight Uom 2 lbs. per 100
