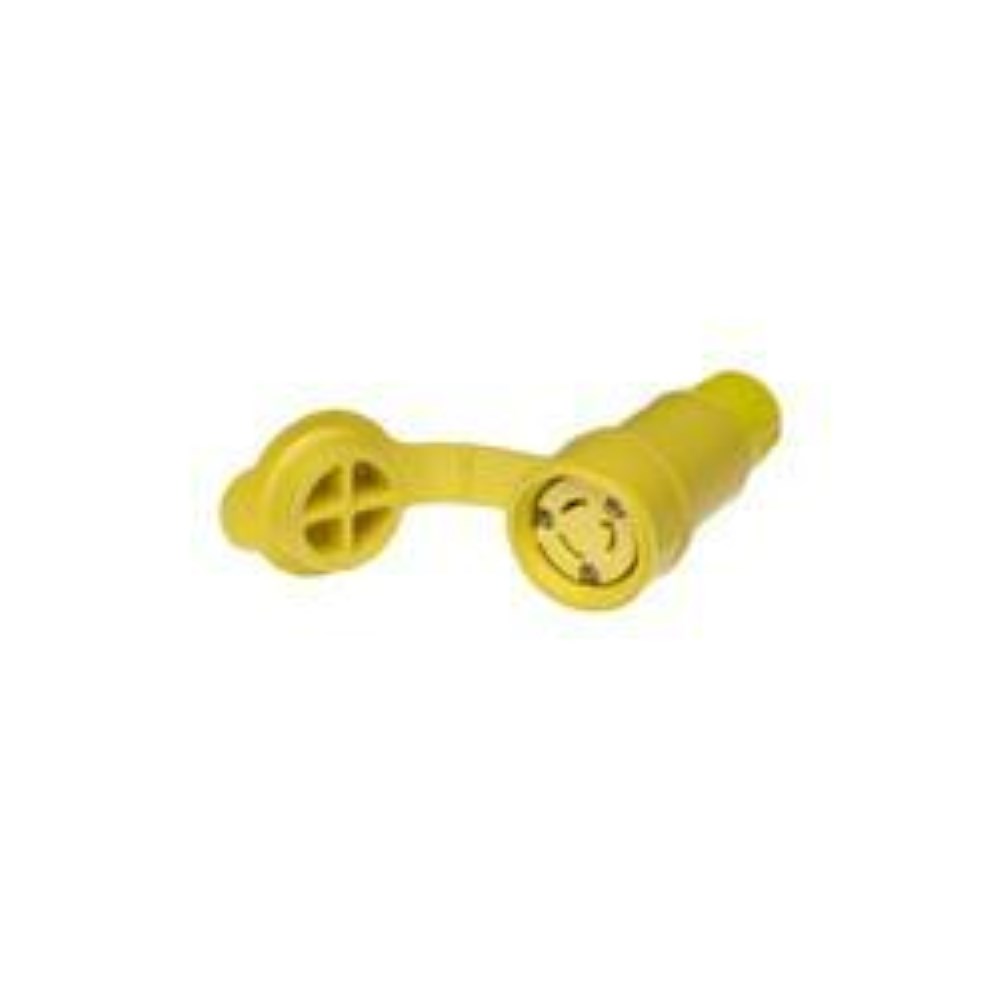

CONNECTOR LOCKING 15A 2P 3W 125V WATERTITE NEMA L5-15

HEAVY-DUTY INDUSTRIAL

WOODHEAD® TOUGH NYLON SAFEWAY® AND SUPER-SAFEWAY™ RUBBERIZED WIRING DEVICES ARE DESIGNED FOR USE IN RUGGED INDUSTRIAL ENVIRONMENTS
Woodhead Super-Safeway products are heavy-duty industrial-wiring devices designed for abusive conditions and dependable performance for applications that demand the unmatched durability that rubber exclusively delivers.
These rubberized industrial devices are the only wiring devices made of NEo¯TEX® Paracril OZO rubber a rubber construction that yields ultimate performance within a wide temperature range around many oils and chemicals and abrasive conditions.

Features and Benefits
• Multiple seal plug/connector interface keeps out contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position ready to wire
• Wire screw terminals are tri-drive to be used with straight blade Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in place before securing wire
• Captive tri-drive head Stainless Steel speed screw provides easy assembly and long life
• Three piece strain relief seals cord without damaging the cord

Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEoTEX® Paracril OZO rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass

Environmental
NEMA Rating: NEMA 1 3 4 4X 5 6 6P and 12 IEC Rating: IP55 56 57 65 66 and 67
Operating Temperature: Maximum continuous 75° C minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
