GE current

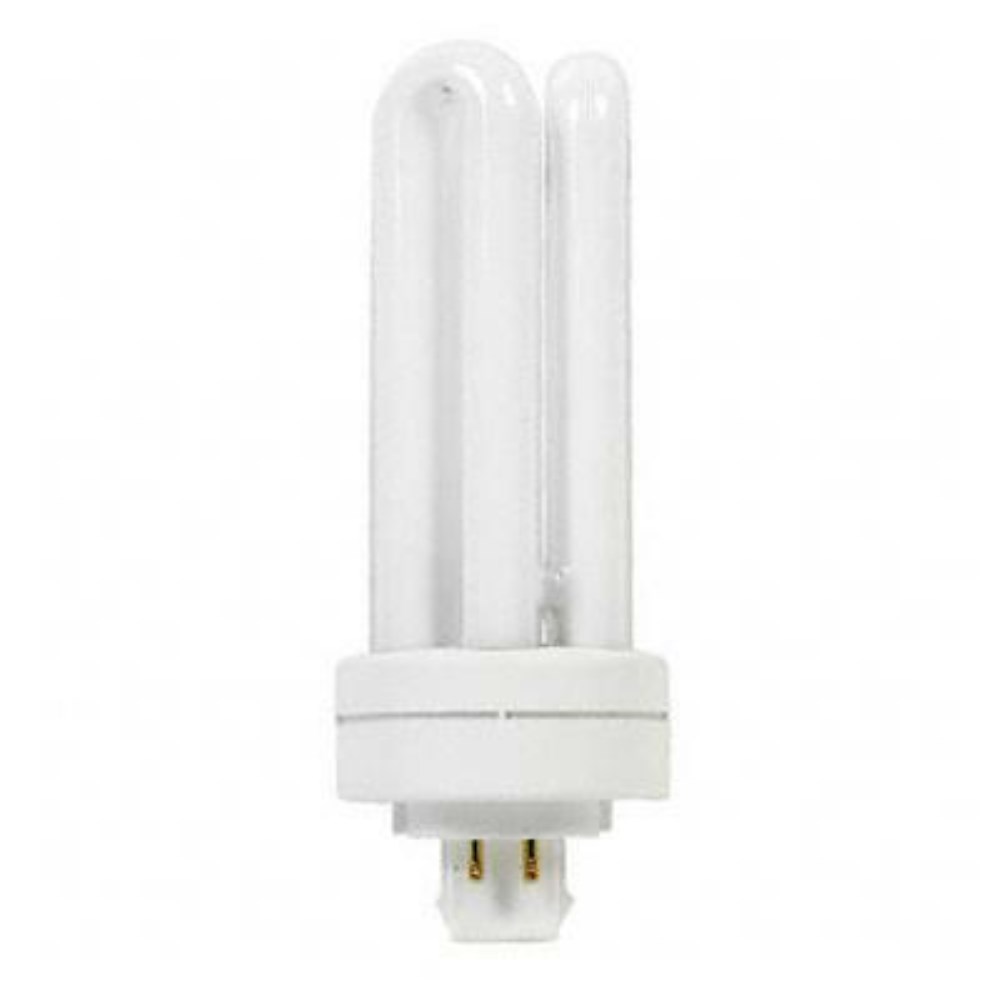

LAMP FLUO COMPACT T4 BASE G24Q-3 26W 3 TUBES 4100K

GEE-97617 MFG #: 97617
F26TBX841AECO_1 - bab6c9ec-98fd-4c4f-b478-1e8795fd85ac.jpg
  • Best Seller: No
  • Country Origin: HUN
  • Dangerous Goods: No
  • Diameter: 0.5" (12.7 mm)
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Lamp Average Life: 17000
  • Lamp Base Type: GX24q-3: CFL 4 Pin Triple Tube Base 600V 75W
  • Lamp Shape: T4
  • Lamp Type: Compact Fluorescent
  • Limited Quantity: No
  • Lumens: 1800
  • Made in Canada: No
  • Manufacturer: GENERATION LIGHTING (VISUAL COMFORT &CO)
  • Manufacturer Category: COMPACT FLUORESCENT
  • Manufacturer Product Code: 97617
  • Mfr Vendor ID: 527
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 677443
  • Unit of Measure: E
  • UPC: 043168976176
  • Wattage: 26
  • Web Group: 1090300000000
97617 - F26TBX/841/A/ECO
GE Ecolux® Biax® T4 - Facilities; Retail Display; Hospitality; Office; Restaurant; Warehouse

GENERAL CHARACTERISTICS
Lamp Type Compact Fluorescent - PlugIn
Bulb T4
Base GX24q-3
Equivalent Wattage (NOM) 100.0 W
Rated Life (NOM) 17000.0 h
Starting Temperature (MIN) 0.0 °C
Cathode Resistance (NOM) 2.7 Ohm
Mercury Content (NOM) 3.0 mg
Picograms of Mercury (NOM) 115.3 pg
Rated Life (rapid start) @ Time 17000.0 @ 3.0/20000.0 @ 12.0 h
Additional Info Dimmable with appropriate dimming ballast./End of Life Protection (EOL)/TCLP compliant
Primary Application Facilities;Retail
Display;Hospitality;Office;Restaurant;Warehouse

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (NOM) 1800.0
Mean Lumens (NOM) 1530.0
Nominal Initial Lumens per Watt (NOM) 69.23077
Color Temperature (NOM) 4100.0 K
Color Rendering Index (CRI) (NOM) 82.0

ELECTRICAL CHARACTERISTICS
Wattage (NOM) 26.0
Voltage (NOM) 120.0
Current (max) (NOM) 5.25 A
Open Circuit Voltage (after preheating) (MAX) 265.0 V
Open Circuit Voltage Across
Starter (MIN) 198.0 V
Lamp Current (NOM) 0.42 A
Preheat Voltage (MIN) 4.25 V
Supply Current Frequency (NOM) 20.0 Hz

DIMENSIONS
Maximum Overall Length (MOL) (NOM) 5.200 in(132.1 mm)
Nominal Length (NOM) 5.200 in(132.1 mm)
Bulb Diameter (DIA) (NOM) 0.406 in(10.3 mm)

PRODUCT INFORMATION
Product Code 97617
Description F26TBX/841/A/ECO
ANSI Code 60501-IEC-3426-1
Standard Package Case
Standard Package GTIN 10043168976173
Standard Package Quantity 10
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 10
UPC 043168976176
