GE current

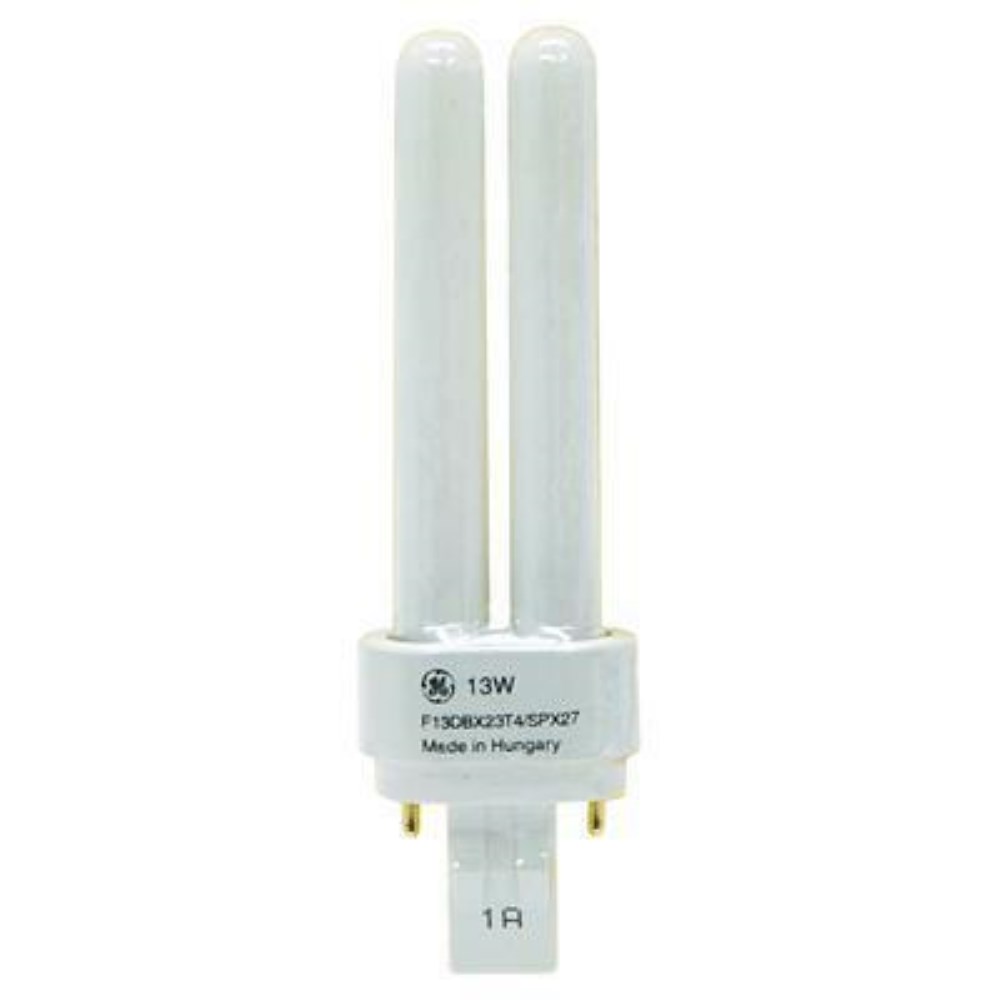

LAMP FLUO COMPACT T4 BASE G23-2 13W 2 TUBES 2700K

GEE-97586 MFG #: 97586
F13DBX23827ECO_1 - c97595e2-80e8-4a90-afba-ec533021133a.jpg
  • Best Seller: No
  • Country Origin: HUN
  • Dangerous Goods: No
  • Diameter: 0.5" (12.7 mm)
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Lamp Average Life: 10000
  • Lamp Base Type: GX23-2: CFL 2 Pin Double Tube Base 600V 75W
  • Lamp Shape: T4
  • Lamp Type: Compact Fluorescent
  • Limited Quantity: No
  • Lumens: 1200
  • Made in Canada: No
  • Manufacturer: GENERATION LIGHTING (VISUAL COMFORT &CO)
  • Manufacturer Category: COMPACT FLUORESCENT
  • Manufacturer Product Code: 97586
  • Mfr Vendor ID: 527
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 677181
  • Unit of Measure: E
  • UPC: 754473975869
  • Wattage: 13
  • Web Group: 1090300000000
97586 - F13DBX23/827/ECO
GE Ecolux® Biax® T4 - Facilities; Retail Display; Hospitality; Office; Restaurant; Warehouse

GENERAL CHARACTERISTICS
Lamp Type Compact Fluorescent - PlugIn
Bulb T4
Base GX23-2
Equivalent Wattage (NOM) 60.0 W
Rated Life (NOM) 10000.0 h
Starting Temperature (MIN) -4.0 °C
Cathode Resistance (NOM) 10.5 Ohm
Mercury Content (NOM) 3.0 mg
Picograms of Mercury (NOM) 437.9562 pg
Additional Info TCLP compliant
Primary Application Facilities;Retail
Display;Hospitality;Office;Restaurant;Warehouse

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (NOM) 810.0
Mean Lumens (NOM) 685.0
Nominal Initial Lumens per Watt (NOM) 62.30769
Color Temperature (NOM) 2700.0 K
Color Rendering Index (CRI) (NOM) 82.0

ELECTRICAL CHARACTERISTICS
Wattage (NOM) 13.0
Voltage (NOM) 120.0
Open Circuit Voltage Across
Starter (MIN) 198.0 V
Lamp Current (NOM) 0.285 A
Supply Current Frequency (NOM) 60.0 Hz

DIMENSIONS
Maximum Overall Length (MOL) (NOM) 4.840 in(122.9 mm)
Nominal Length (NOM) 4.700 in(119.4 mm)
Bulb Diameter (DIA) (NOM) 0.250 in(6.4 mm)

PRODUCT INFORMATION
Product Code 97586
Description F13DBX23/827/ECO
Standard Package BUNDLE
Standard Package GTIN
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 50
UPC 043168975865

CAUTIONS & WARNINGS
Caution
• Lamp may shatter and cause injury if broken
- Remove and install by grasping only plastic portion of the lamp.

NOTES
• Based on 60Hz reference circuit.
• Fluorescent lamp lumens decline during life
