GE current

LAMP FLUO COMPACT BASE G24D-218W 3500K

GEE-97579 MFG #: 97579

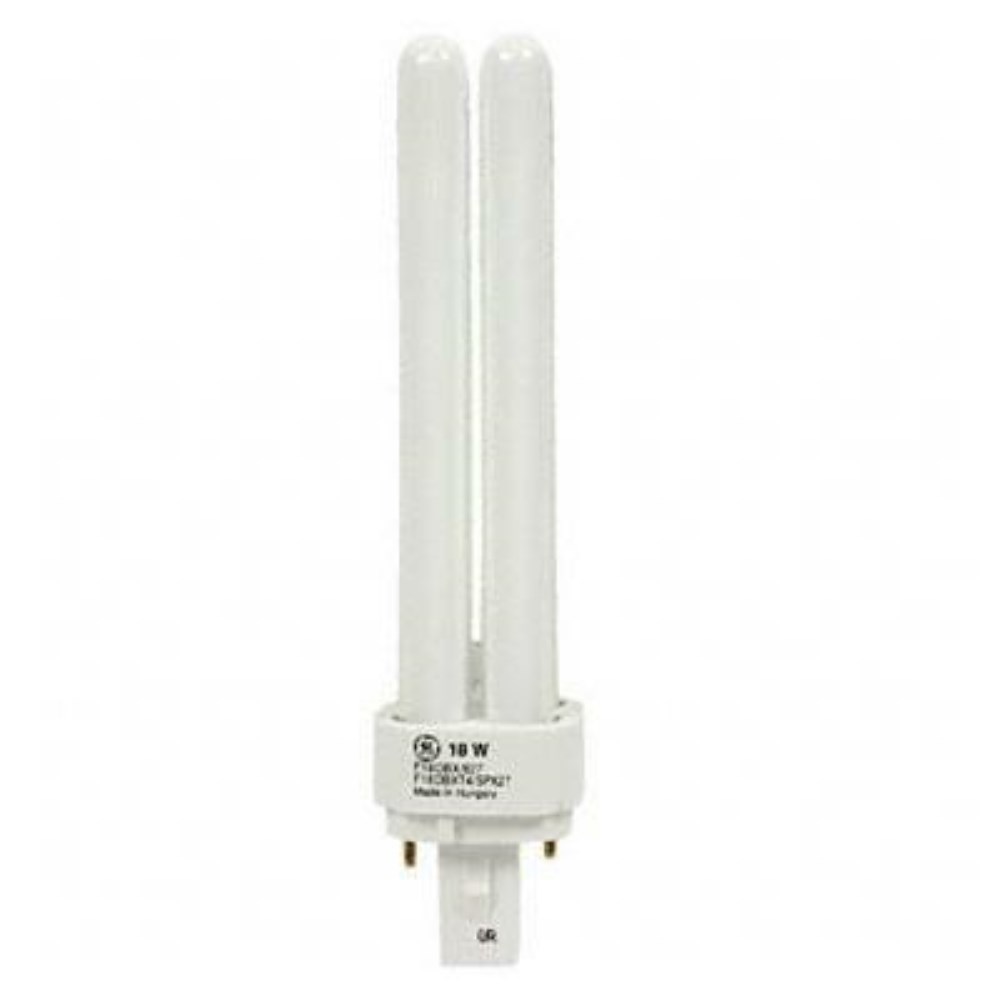

F18DBX835ECO_1 - 37c5f80d-7765-413b-a834-a2c630741124.jpg
  • Best Seller: No
  • Country Origin: HUN
  • Dangerous Goods: No
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Lamp Average Life: 10000
  • Lamp Base Type: G24d-2: CFL 2 Pin Double Tube Base 600V 75W
  • Lamp Shape: Twin Tube
  • Lamp Type: Compact Fluorescent
  • Length: 66" (1676.4 mm)
  • Limited Quantity: No
  • Lumens: 1200
  • Made in Canada: No
  • Manufacturer: GENERATION LIGHTING (VISUAL COMFORT &CO)
  • Manufacturer Category: COMPACT FLUORESCENT
  • Manufacturer Product Code: 97579
  • Mfr Vendor ID: 527
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 677303
  • Unit of Measure: E
  • UPC: 754473975791
  • Wattage: 18
  • Web Group: 1090300000000
97579 - F18DBX/835/ECO
GE Ecolux® Biax® T4 - Facilities; Retail Display; Hospitality; Office;
Restaurant; Warehouse

GENERAL CHARACTERISTICS
Lamp Type Compact Fluorescent - PlugIn
Bulb T4
Base G24d-2
Equivalent Wattage (NOM) 65.0 W
Rated Life (NOM) 10000.0 h
Starting Temperature (MIN) -15.0 °C
Cathode Resistance (NOM) 6.05 Ohm
Mercury Content (NOM) 3.0 mg
Picograms of Mercury (NOM) 306.1224 pg
Additional Info TCLP compliant
Primary Application Facilities;Retail
Display;Hospitality;Office;Restaurant;Warehouse

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (NOM) 1200.0
Mean Lumens (NOM) 980.0
Nominal Initial Lumens per Watt (NOM) 66.66667
Color Temperature (NOM) 3500.0 K
Color Rendering Index (CRI) (NOM) 82.0

ELECTRICAL CHARACTERISTICS
Wattage (NOM) 18.0
Voltage (NOM) 100.0
Open Circuit Voltage Across
Starter (MIN) 198.0 V
Lamp Current (NOM) 0.22 A
Current Crest Factor (MAX) 1.7
Supply Current Frequency (NOM) 60.0 Hz

DIMENSIONS
Maximum Overall Length (MOL) (NOM) 6.060 in(153.9 mm)
Nominal Length (NOM) 6.100 in(154.9 mm)
Base Face to Top of Lamp (NOM) 5.160 in(131.1 mm)

PRODUCT INFORMATION
Product Code 97579
Description F18DBX/835/ECO
ANSI Code 60901-IEC-0518-2
Standard Package BUNDLE
Standard Package GTIN
Standard Package Quantity 50
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard
Package 50
UPC 043168975797
