Schneider Electric

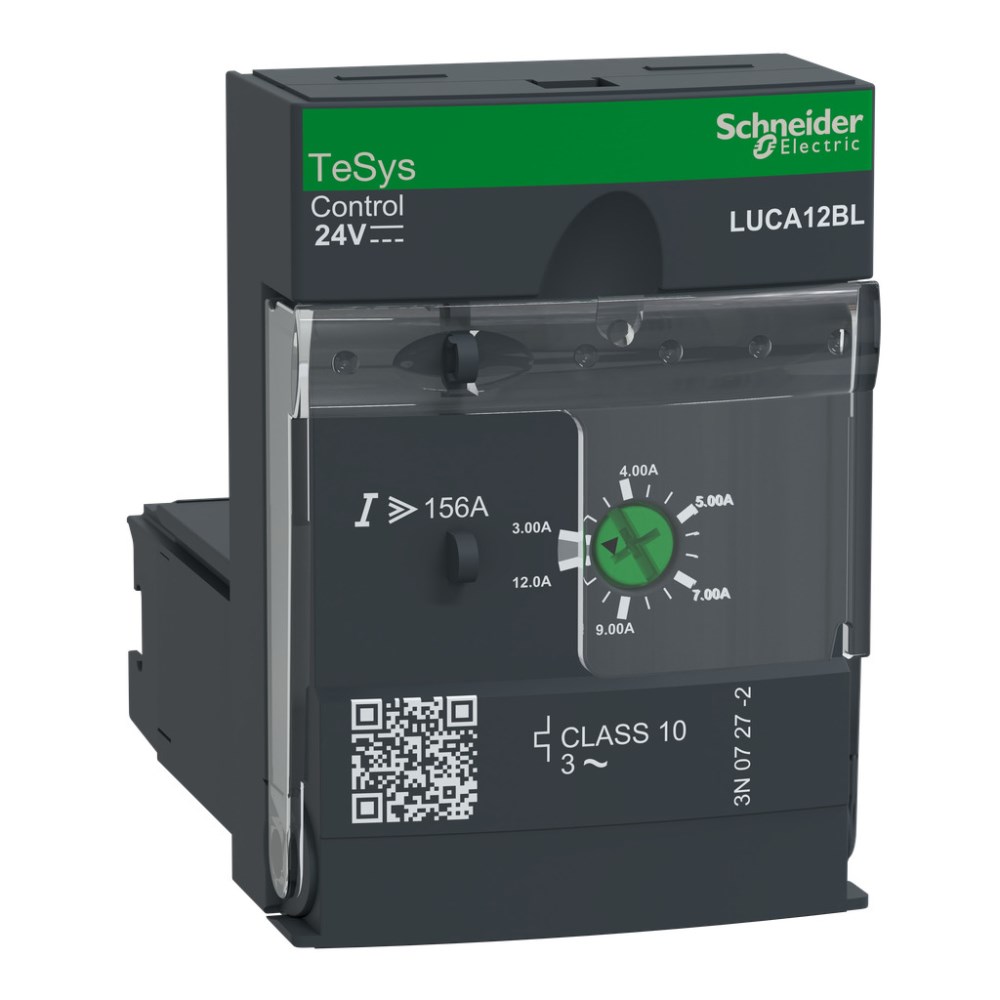

RELAY OVERLOAD ADVANCED 3PH 10 CLASS 3-12A SETTING 24VDC

SCH-LUCA12BL MFG #: LUCA12BL
SCH-LUCA12BL_1 - 3a1e7992-c990-43fa-b45f-214f30526844.jpg
  • Best Seller: No
  • Brand: TeSys Contactors & relays SE
  • Dangerous Goods: No
  • Discontinued: No
  • Featured Product: No
  • Green Product: No
  • Limited Quantity: No
  • Made in Canada: No
  • Manufacturer: SCHNEIDER ELECTRIC
  • Manufacturer Category: TE1U-30355
  • Manufacturer Product Code: 22190
  • Mfr Vendor ID: 599
  • Oversize product: No
  • Restricted Delivery: No
  • SPF Product ID: 142031
  • UPC: 785901221906
  • Web Group: 1020901000000
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
