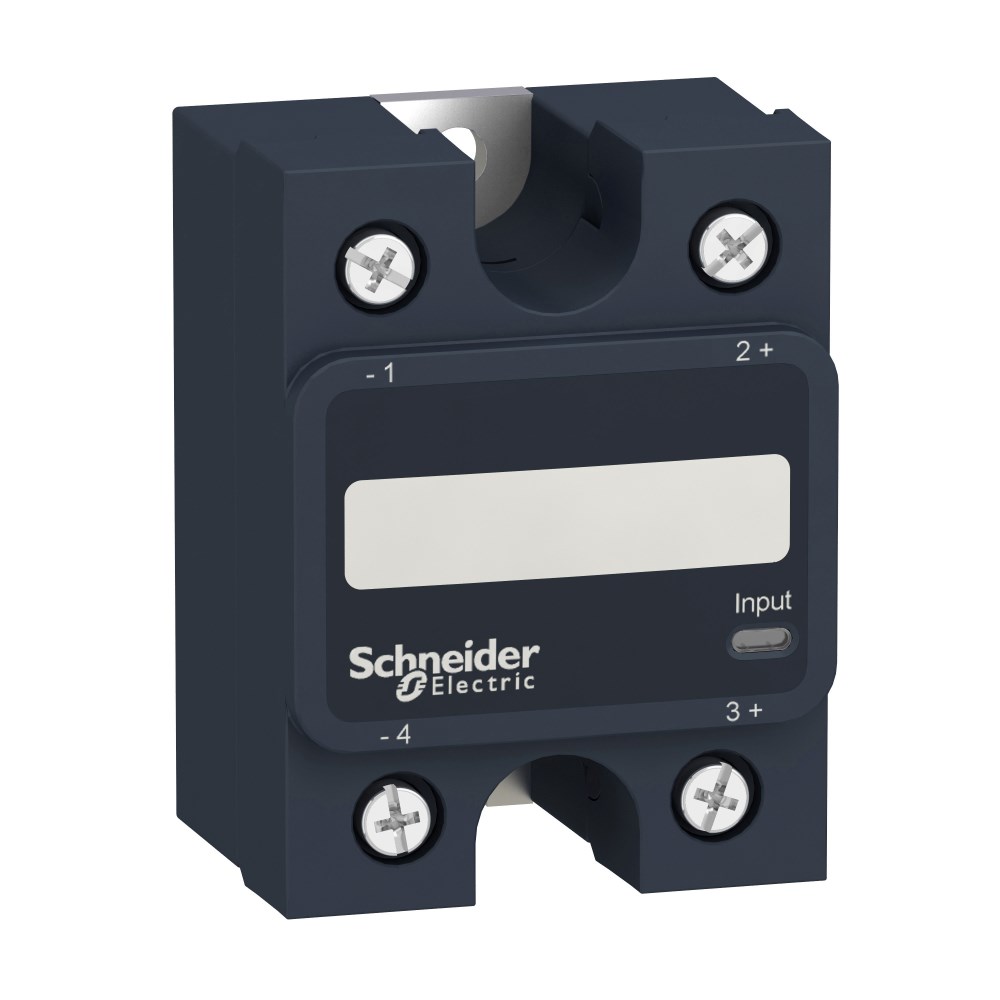

PN MT SSR,IN 90-280VAC,OUT 48-660VAC,50A

This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 50 A, is controlled with a 90 to 280 V DC circuit, has a rated load voltage of 48 to 660 V DC output. It also has a test button for easy debugging, testing and commissioning It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events
