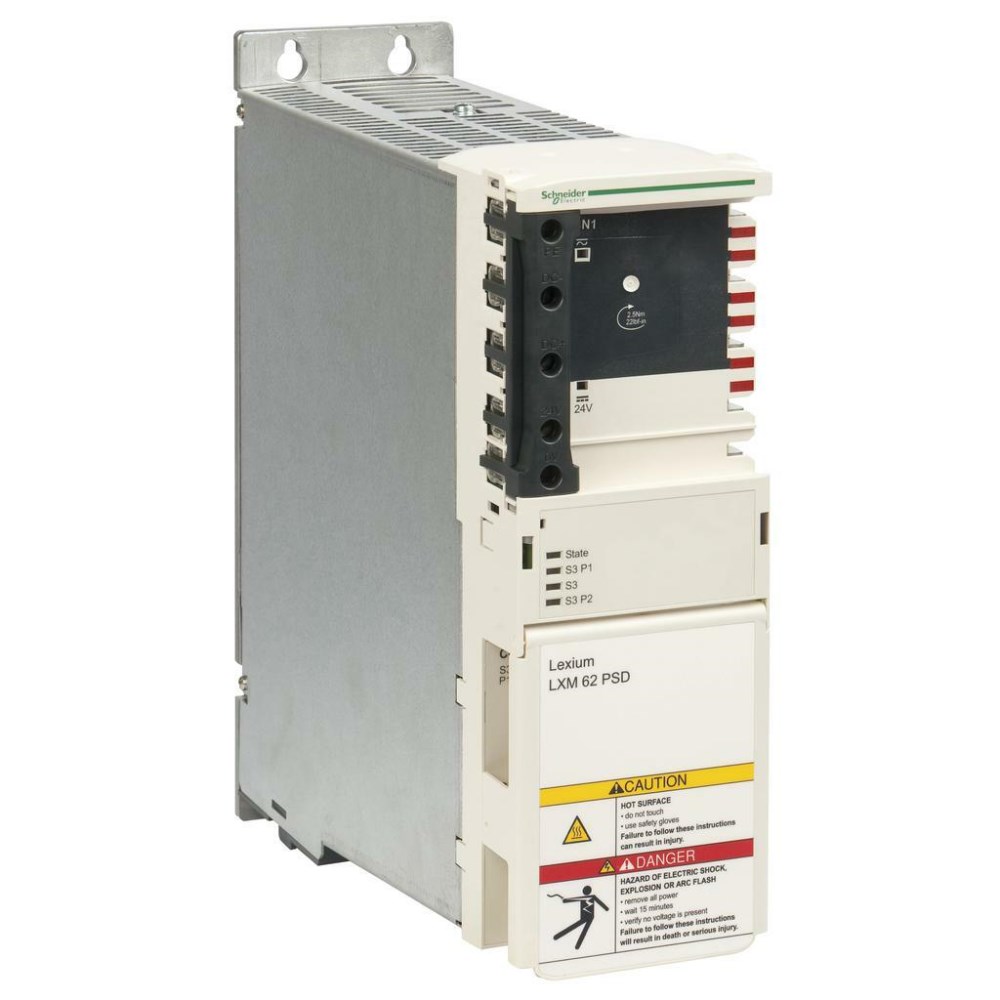

LEXIUM LXM 62 POWER SUPPLY DRIVE

This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V single/three phase and a rated supply current of 21A single phase, 42A three phase AC. It is an IP20 rated product. Its dimensions are 89.5mm (width) x 270mm (depth) x 310mm (height). It weighs 6.3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. This product is certified by CSA and UL. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 and UL 508C standards. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
