EM4800. 80MA CTS. 120V CP. 60HZ SE

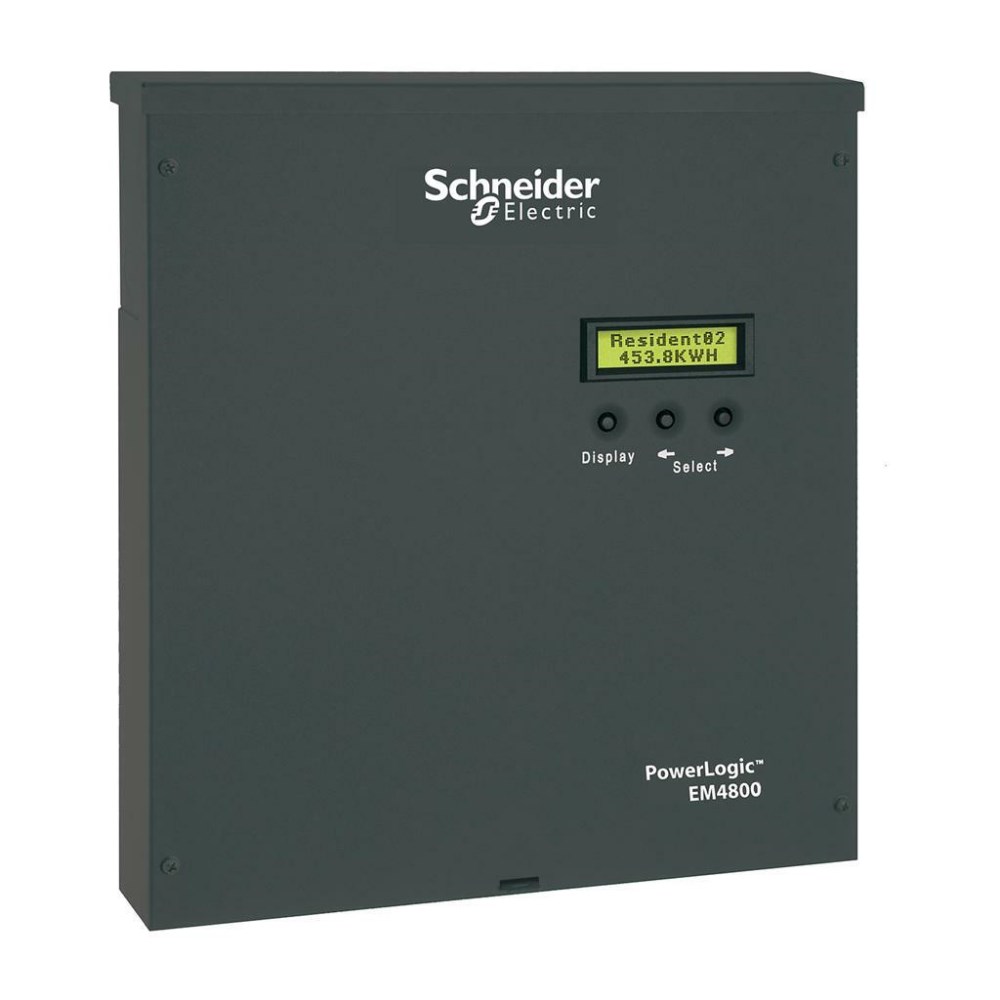

This multi-circuit power meter is part of the PowerLogic EM4800 Series. This compact multi-circuit energy meter enables reliable metering of individual tenants with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for multi-tenant or departmental metering applications within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 80 mA solid core current transformers. Designed for 120 volts networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 440 mm in height and 55 mm in depth ; for 5.4 kg.
