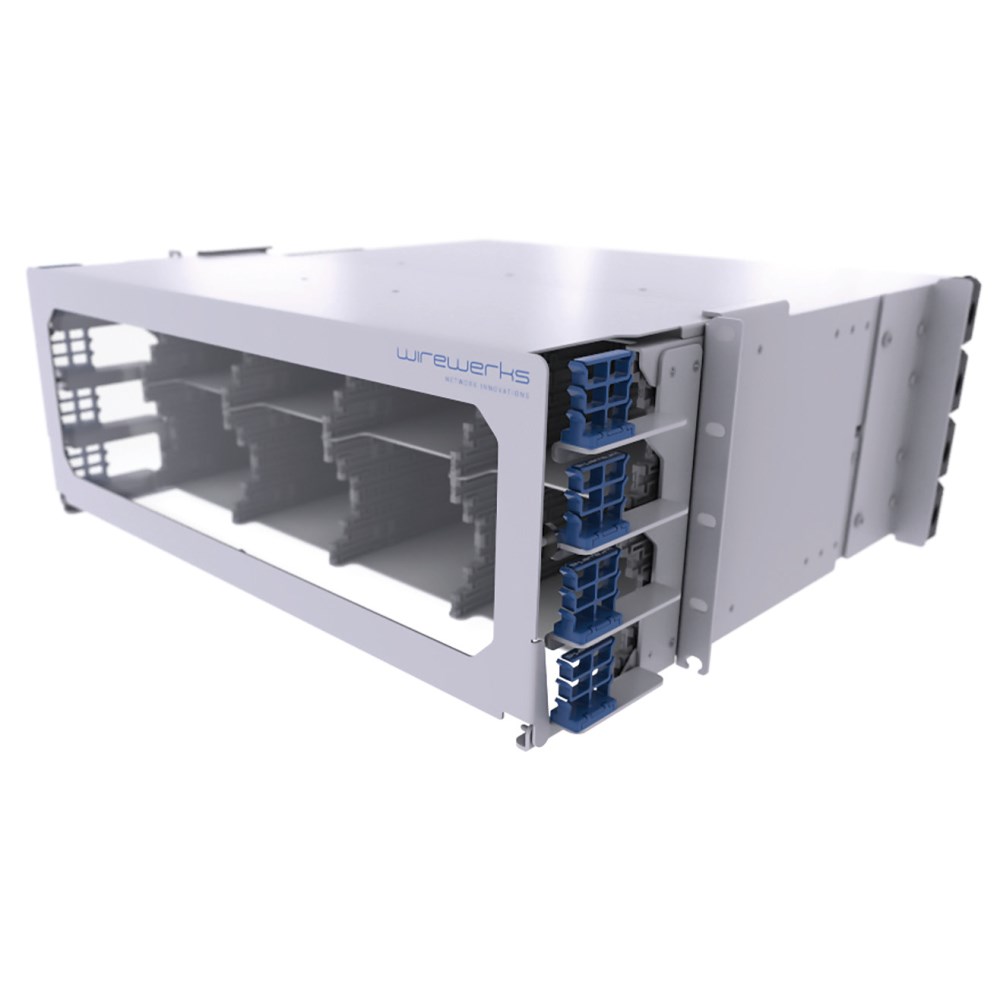

NEXTSTEP 4U RACK MOUNT PATCH PANEL 576 FIBER

WirewerksNextSTEP Technology Fiber Management Systemis a complete solution for optical fiber operations and management in Data Center, Broadband and Enterprise applications. The NextSTEP system includes rack-mount patch panels, wall-mount enclosures and an FDF system (fiber distribution frame) that accept any combination of NextSTEP Fiber Modules and cassettes for fiber patching, distribution, splicing, splitter and WDM applications in virtually any fiber network application. Please contact us for more information and your copy of the complete NextSTEP Solutions Brochure. WirewerksNextSTEP 1U Rack Mount Patch Panel features an industry-first horizontal slot design for mounting slide-in NextSTEP Fiber Modules and cassettes. Each horizontal slot is stepped (offset) from adjacent slots, providing easy physical and visual access to any individual fiber module without disrupting other modules or fibers co-resident in the same panel. NextSTEP 1U Patch Panels feature unrestricted front and rear access for easy installation and maintenance. The guide-rail system that secures each slide-in/out module into place features clickin-place stops that indicate when a module is properly seated in its correct operational position aswell as partially withdrawn positions for easy technician access. NextSTEP 1U Patch Panels are compatible with all NextSTEP Fiber Modules, and accept up to twelve (12) single-slot modules in any combination in any slot position. NextSTEP Modules slide in or out from the front or rear of the panel without tools -- making installations, MACs, and maintenance fast, easy and cost-effective. Fiber counts in 1RU for typical configurations include up to 144F with LC/SC-Patch or Distribution Modules; up to 288F with Splice Tray Modules; and up to 1,152F with MPO Adapter Strip Modules.The NextSTEP 1U Rack Mount Patch Panel is suitable for virtually any fiber networking application regardless of network topology, installation environment, fiber type, connector type, or fiber termination methodology. Three Configurations to Match Customer NeedsThe NextSTEP 1U Rack Mount Patch Panel is available in three configurations. Each configuration may be field-modified to any other configuration for greater application flexibility, reduced parts/spares requirements and manageable cost control. ¢TheStandardconfiguration (NS-PP-W1U1) ships complete with front and back covers, installation hardware, 3 CableTrees, 3 CableBundles, and the CableGrip cable management accessories ¢TheLightconfiguration (NS-PP-W1U2) ships with installation hardware and CableTree &CableBundle magnetic cable management accessories; front and back panel covers are not included ¢TheLeanversion (NS-PP-W1U1L) is ideal for top-of-rack and/or splice bay applications and ships with installation hardware; covers and cable management accessories are not included ¢CableTreeandCableBundlecable management accessories feature magnetic bases that allow infinite repositioning to provide customized fiber routing, strain-relief, and bend-radius protection. Technicians may relocate these devices as needed during installation and maintenance routines to control individual fibers and maintain fiber groupings. ¢CableGripcable attachment devices replace zip-ties and provide secured cable entry for virtually any size/type of fiber cable. Precision, adjustable CableGrips support both loose-tube and tight-buffered cables, controlling fiber movement appropriately, without crushing cables and introducing performance-robbing micro-bends in fibers.
