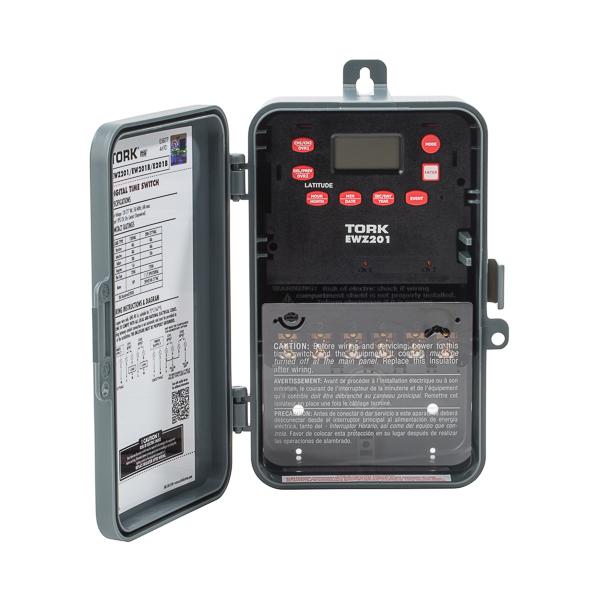

Astro Digital 2CH 30A 120-277V SPST DPST

Three Contact Settings:

Two- Channel: Factory default operates with two independent SPST
contacts.
Double Pole Option: Software allows option for single channel DPST
setting.
Momentary Option: For mechanically held contractors: Configure with
simple jumper change for single channel momentary operation
Scheduling: 32 ON & OFF set points for individual programs for each
day of the week. Minimum setting is 1 minute
Block Holiday: 20 holiday blocks can be set for individual days or for
duration of any number of days
Daylight Saving: Automatic (can be omitted)
Leap Year: Automatic Compensation
Manual Override: Until the next regularly scheduled ON or OFF, automatic
operation then resumes
Clock Format: AM/PM
Power Outage Backup: Permanent schedule retention. Supercapacitor provides
4 days of real time backup
Enhanced Switching: Inrush current limiting technology protects relay
contacts for extended life with zero cross switching. Rated for LED lighting
drivers and electronic ballasts
