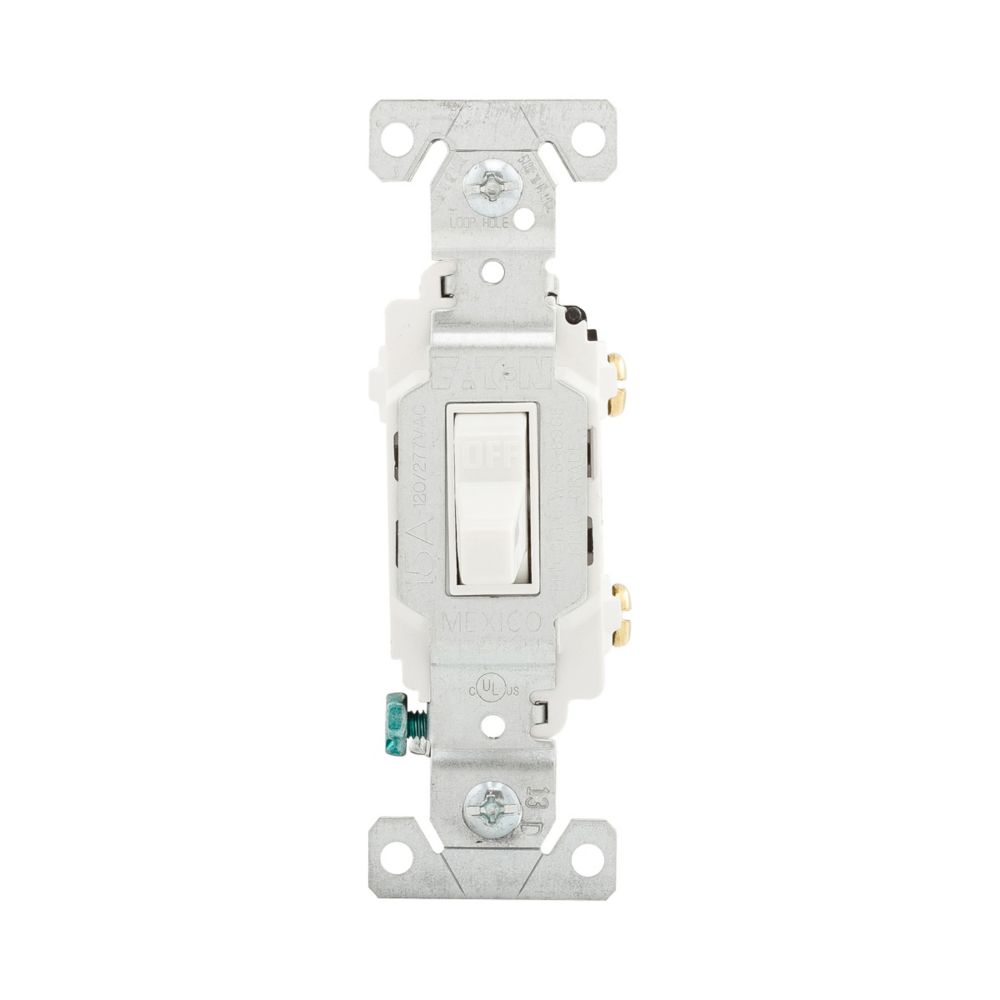

15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Back & Side Wired, - White

Technical Information
AC Horsepower Ratings
HP Rating: 1/2HP-120V 2HP-240V
Electrical Specifications
Amperage: 15 Amp
Voltage: 120/277 VAC
Max. Amperage: 12 Amp
Dielectric Voltage: Withstands 1500V for 1 minute
Temperature Rise: Maximum 30 degrees C rise
Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40ºC to 65ºC

Material Specifications
Body Material: Thermoplastic
Base Material: PBT
Strap Material: Steel
Actuator Material: Polycarbonate
Toggle: Polycarbonate
Cover Material: Nylon
Contacts: Silver-Cadmium 031 Thick
Terminal Screws: Steel 8-32
Color: White

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
Termination: Back & Side
Product ID: Stamped on Strap
Torque Range: 12-14 inch pounds

Product Features
Voltage: 120/277 Volt
HP Rating: 1/2HP-120V 2HP-240V-277V
Actuator Material: Thermoplastic
Color: White
Warranty: 10 Year Limited

Standards and Certifications
NEMA: WD-1 & WD-6
ANSI: C-73
UL Fed Spec WS896E
UL Standard: UL 20
CSA C22.2 No. 111
