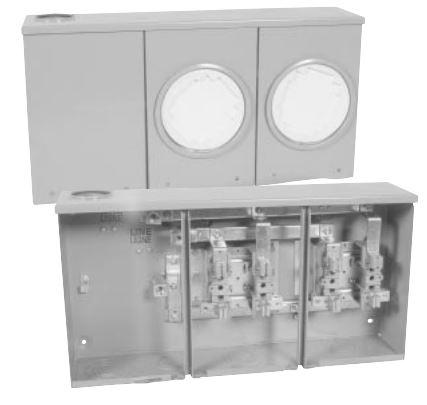

SDC Series

• Factory Bussed - 200 Amp Main c/w Blank Compartment



• 2 - 4 position horizontal


• 4 Jaw meter sockets


• 100 Amp - 600 VOLTS per position


• All units above c/w 3" KO for BC


• Approved conductor range: Line No. 6-250 MCM CU/AL Load No. 6-1/0 AWG
  CU/AL


• Approved for overhead or underground use
