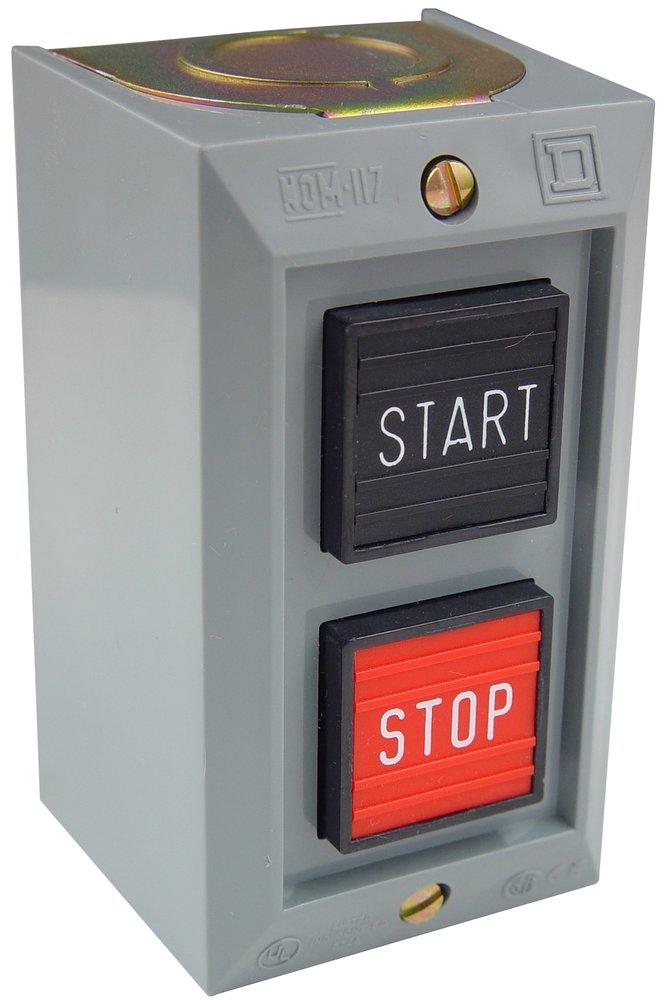

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Read more
Specification & Document
Brand
[{"en":"Harmony Control & Signalling SE","fr":""}]
Device Type
[{"en":"Push Button","fr":"Bouton poussoir"},{"en":"Station","fr":"Station"}]
Manufacturer
SCHNEIDER ELECTRIC
Brand
[{"en":"Harmony Control & Signalling SE","fr":""}]
Device Type
[{"en":"Push Button","fr":"Bouton poussoir"},{"en":"Station","fr":"Station"}]
Manufacturer
SCHNEIDER ELECTRIC
Brand
[{"en":"Harmony Control & Signalling SE","fr":""}]
Device Type
[{"en":"Push Button","fr":"Bouton poussoir"},{"en":"Station","fr":"Station"}]
