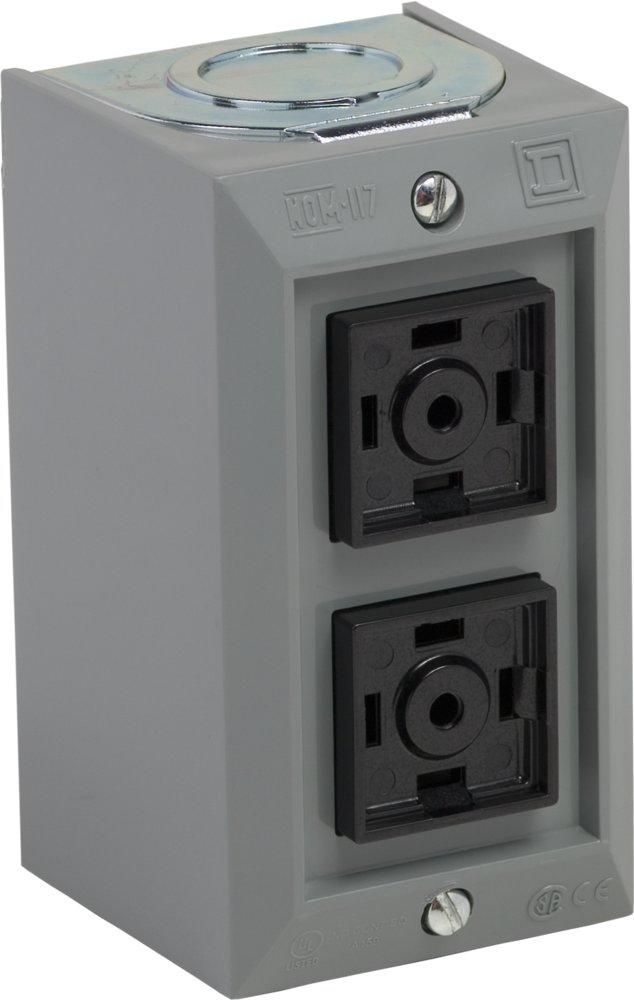

This product is part of the Harmony 9001B range, an offer of complete control stations." "This control station has 2 pushbutton with 2 NO and 2 NC contact." "It is a type B control station with a rated voltage of 600V AC and rated operating current of 5A." "It is furnished with screw clamp terminals for electrical connection." "It is an universal standard duty, NEMA 1 rated product." "This control station comes with a plastic cover." "It is used in simple hoisting applications, overhead cranes and building cranes. It is also ideal for lifts and jogging applications (conveyors)." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It can be surface mounted, suitable for indoor installation." "The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options."
Read more
Specification & Document
Brand
[{"en":"Harmony Control & Signalling SE","fr":""}]
Device Type
[{"en":"Push Button","fr":"Bouton poussoir"},{"en":"Station","fr":"Station"}]
Manufacturer
SCHNEIDER ELECTRIC
Brand
[{"en":"Harmony Control & Signalling SE","fr":""}]
Device Type
[{"en":"Push Button","fr":"Bouton poussoir"},{"en":"Station","fr":"Station"}]
Manufacturer
SCHNEIDER ELECTRIC
Brand
[{"en":"Harmony Control & Signalling SE","fr":""}]
Device Type
[{"en":"Push Button","fr":"Bouton poussoir"},{"en":"Station","fr":"Station"}]
