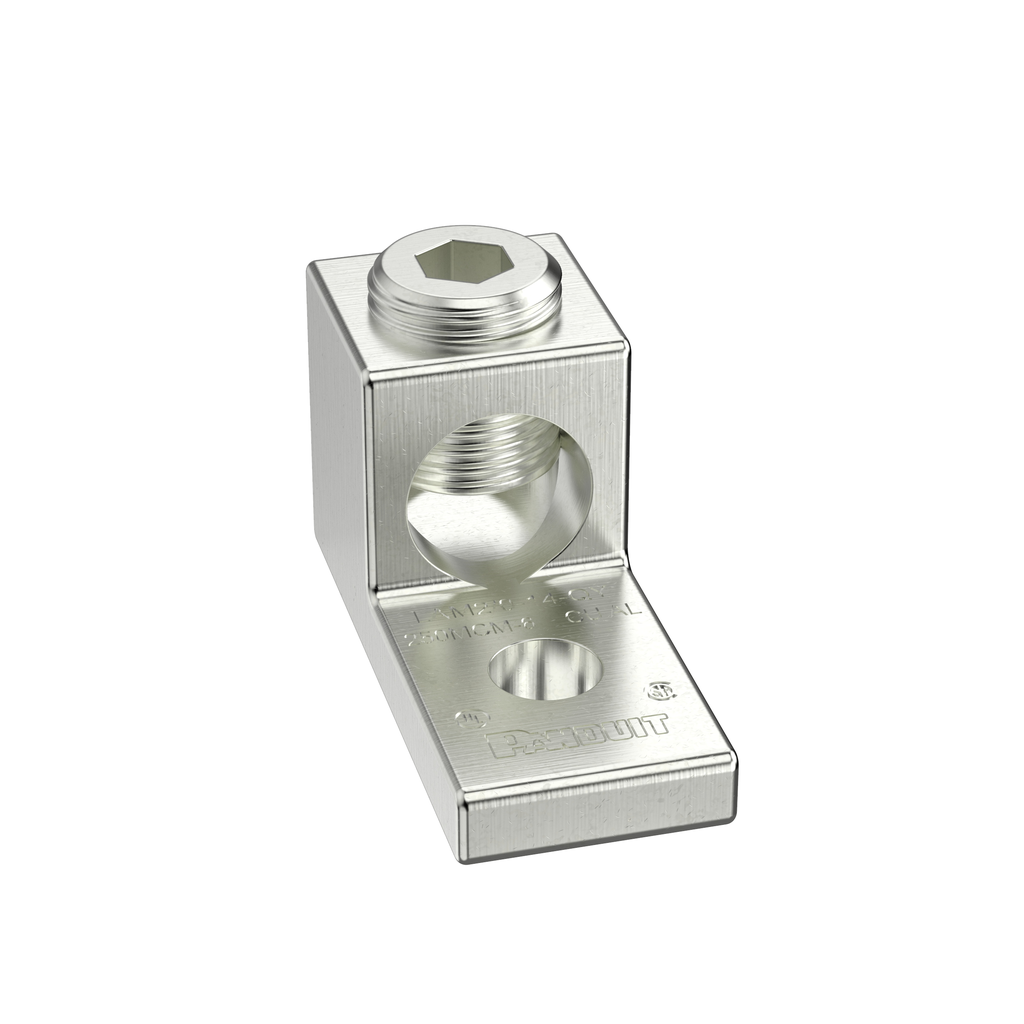

The LAMA2/0-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
Read more
Specification & Document
Bolt Size
1/4"
Conductor Material
["CU/AL"]
Lug or Terminal Application / Type
[{"en":"Mechanical","fr":"Mécanique"}]
Lug Range From
2/0
Lug Range To
2/0
Manufacturer
PANDUIT
Bolt Size
1/4"
Conductor Material
["CU/AL"]
Lug or Terminal Application / Type
[{"en":"Mechanical","fr":"Mécanique"}]
Lug Range From
2/0
Lug Range To
2/0
Manufacturer
PANDUIT
Bolt Size
1/4"
Conductor Material
["CU/AL"]
Lug or Terminal Application / Type
[{"en":"Mechanical","fr":"Mécanique"}]
