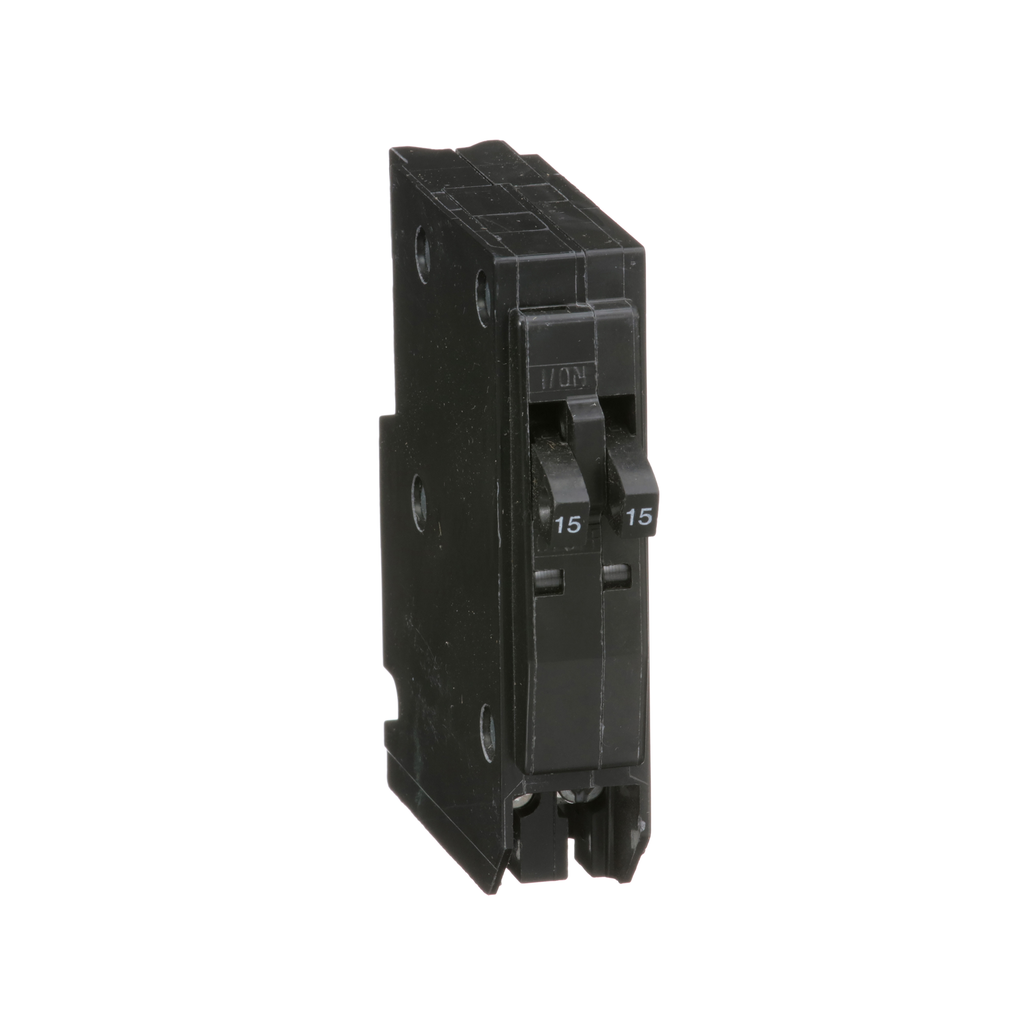

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 2 one pole at 15A for 120/240VAC This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 A full line of accessories are available. The box lugs will accept one 14 AWG to 8 AWG copper or 12 AWG to 8 AWG aluminum wire. This circuit breaker has a height of 3.22 inches, a width of 0.75 inch and a depth of 2.91 inches. QO tandem circuit breakers are UL Listed and CSA certified.
Read more
Specification & Document
Manufacturer Product Code
41800
Amperage
15
Brand
[{"en":"Plug-on and Bolt on breakers SE","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QOT
Breaker Mounting/Termination Type
[{"en":"Plug In","fr":"Branchable"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Manufacturer
SCHNEIDER ELECTRIC
Poles
Tandem
Voltage
120-240
Manufacturer Product Code
41800
Amperage
15
Brand
[{"en":"Plug-on and Bolt on breakers SE","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QOT
Breaker Mounting/Termination Type
[{"en":"Plug In","fr":"Branchable"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Manufacturer
SCHNEIDER ELECTRIC
Poles
Tandem
Voltage
120-240
