Multiple Position with Blank Compartment 200 A per Position 400 A (Main Lugs) 600 V Max., Stud Type. 4 jaw - stud type. Lefthand entry.

General
Type: BSC Series
Maximum Voltage: 600
Meter Position: 3 Position

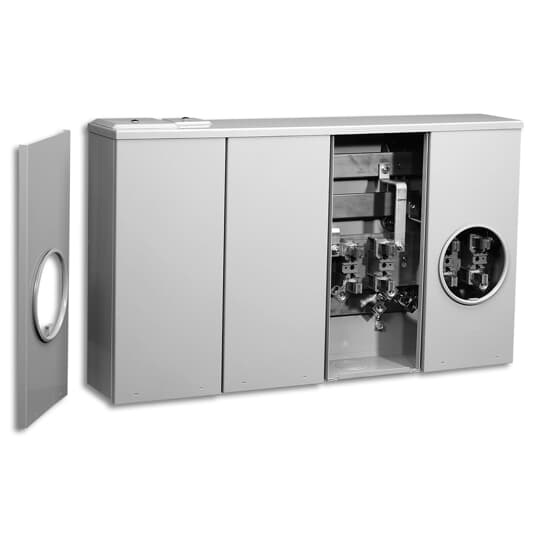

Notes for picture: Picture represents the BS4-G Series. Please refer to the specifications.
Ampere: 400
Application: For use in Ontario
T&B UPC: 62487100334
T&B Status: M

Dimension Information
Conductor Range: Line: Single 1/2 in. studs to accommodate compression lugs (supplied by utility), Load: 6 AWG-250 kcmil.
Depth (in.): 5-5/16
Height (in.): 23-3/8
Width (in.): 43-3/4
