Transformer rated c/w compartment for test switch. 13 jaw. BC Hydro approved with SWL cover with enlarged pad hole.

General
Type: CL, AB, CT, CT-SWL Series
Maximum Voltage: 600

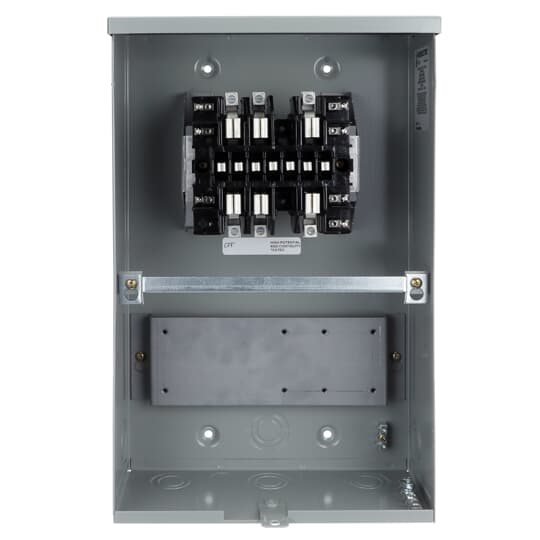

Notes for picture: Picture represents the CT Series. Please refer to the specifications.
Ampere: 20
Application: Primarily used in AB, Sask., Man., Ont., N.B., N.S., P.E.I.
T&B UPC: 62487100658
T&B Status: M

Dimension Information
Conductor Range: 14-10 AWG
Depth (in.): 5-7/16
Height (in.): 19-1/8
Width (in.): 11-13/16
