Catalog Number: BQ2-TCV-CR
Product ID: 7TBA050460R0002
UPC Number: 62487101223
Status: A

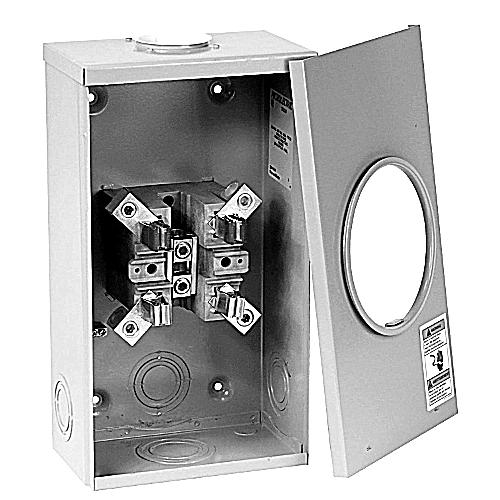

Meter socket standard enclosure 200 amperes 600 volts. 4 jaw. Combination overhead-underground. Corrosion Resistant

North American Specifications (UNSPSC)
UNSPSC 39121102 Meter centers or sockets
IGCC 4325 Residential Single Meter Sockets
Brand Name Microlectric
Type Meter Sockets
Special Features Supplied with screw type ring
Application For overhead/underground installation
Standard CSA 27716
Voltage Rating 600 V
Phase 1 Phase
Size 15-5/8 Inches Height x 8-47/64 Inches Width x 5-
13/32 Inches Depth
Enclosure Weatherproof Type 3R

Packaging
Outer Quantity 1
Outer Dimensions (inches) 8.75x5.41x15.63
Weight Uom 11.9 lbs. Each
