Multiple Position with Blank Compartment 200 A per Position 400 A (Main Lugs) 600 V Max. 4 jaw left hand entry.

General
Type: BD, BDA, BDC, BS4 Series
Maximum Voltage: 600
Meter Position: 2 Position

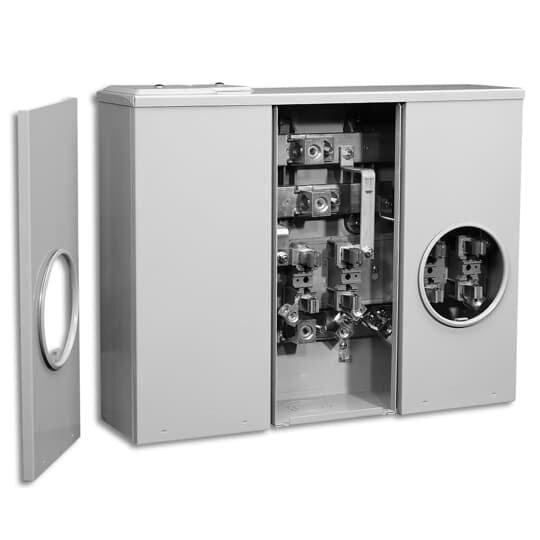

Notes for picture: Picture represents the BS4 Series. Please refer to the specifications.
Ampere: 400
Application: All Provinces
T&B UPC: 62487103230
T&B Status: M

Dimension Information
Conductor Range: Line:Dual rated connectors for 1 x 4 AWG-600 kcmil or 2 x 1/0
AWG-250 kcmil / Load: 6 AWG-250 kcmil
Depth (in.): 5-5/16
Height (in.): 23-3/8
Width (in.): 26-1/4
