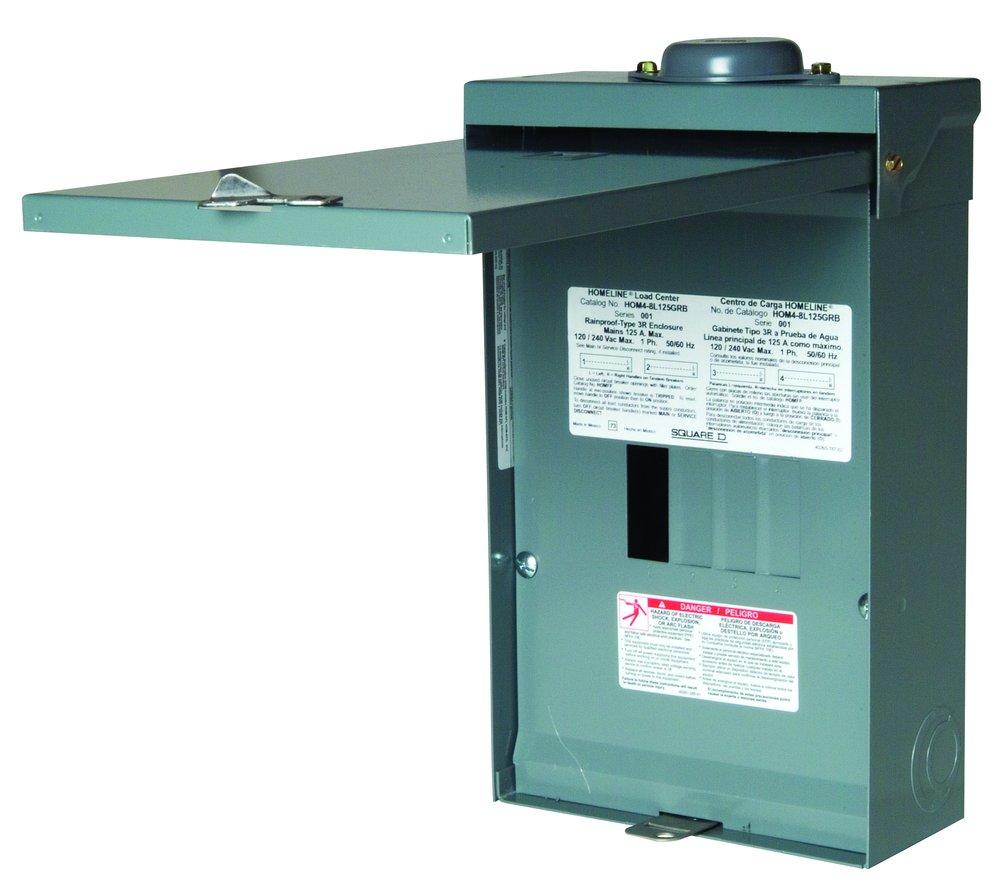

8CCT 125A type 3R ML enclosure

Main
Commercial Status Commercialised
Range of product Homeline
Product or component type Load Centre
[In] rated current 125 A
System Voltage 120/240 V AC
Short-circuit current 10 kA

Complementary
Electrical connection Lugs
AWG gauge AWG 12...AWG 2/0 (aluminium)
AWG 14...AWG 2/0 (copper)
Load centre type Fixed Mains (lugs)
Number of spaces 4
Number of circuits 8
Number of tandem circuit breakers 4
Phase 1 phase
Cover type Surface cover
Device composition Grounding bar included (not installed)
Wiring configuration 3-wire
Material Tin plated aluminium for busbar
Enclosure material Welded galvannealed steel
Cover finish Gray baked enamel
Box number 15R

Environment
Product certifications CSA
NEMA degree of protection NEMA 3R (outdoor)
