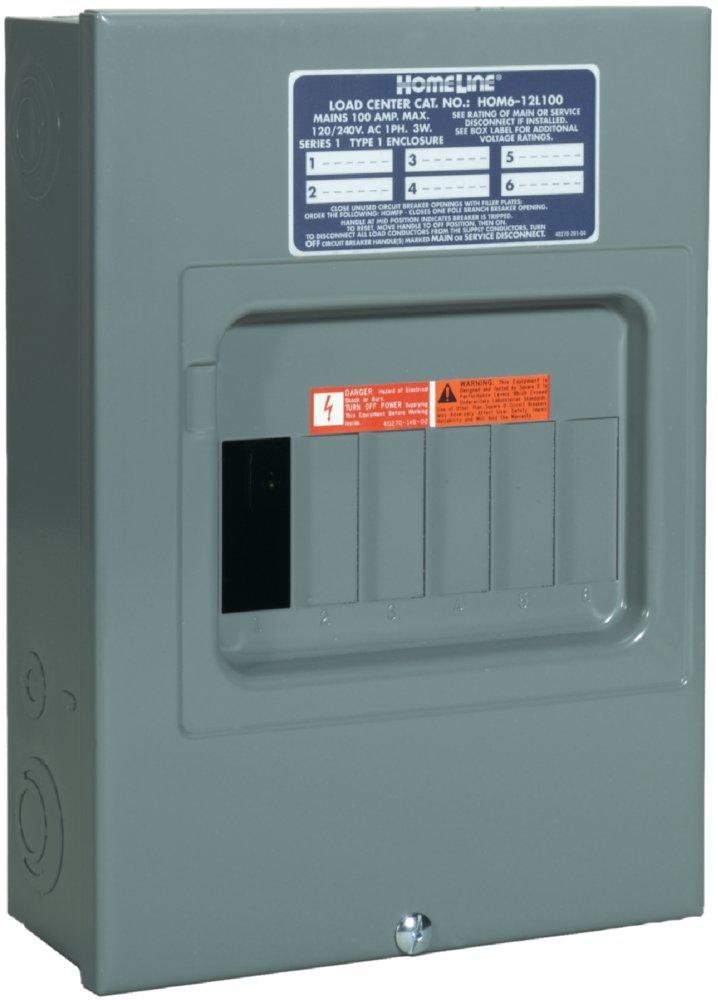

12CCT 100A ML surface trim enclosure

Main
Commercial Status Commercialised
Range of product Homeline
Product or component type Load Centre
[In] rated current 100 A
System Voltage 120/240 V AC
Short-circuit current 10 kA

Complementary
Electrical connection Lugs
AWG gauge AWG 8...AWG 1 (copper)
AWG 8...AWG 1 (aluminium)
Load centre type Fixed Mains (lugs)
Number of spaces 6
Number of circuits 12
Number of tandem circuit breakers 6
Phase 1 phase
Cover type Surface cover
Device composition Grounding bar (ordered separately)
Wiring configuration 3-wire
Material Tin plated aluminium for busbar
Enclosure material Welded sheet steel
Cover finish Gray baked enamel
Box number 4

Environment
Product certifications CSA
NEMA degree of protection NEMA 1 (indoor)
