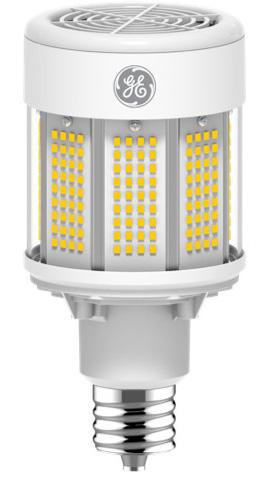

GE LED replacement lamps for HID-Ballast Bypass (Type B)

GE’s LED replacement for HID lamps leverage the low energy and long life of LED.
The existing fixture is wired to bypass the ballast, which reduces energy use and eliminates the need to check ballast compatibility.
Additional maintenance savings are realized by removing costs associated with purchasing and installing ballasts.

LOW-COST OPERATION
• Uses 60% less energy, providing similar light output
• For example, an LED lamp using 150 watts, saves $1,705" energy costs over the rated life of the lamp vs. a standard 460 watt HID lamp system (400W lamp and 60W ballast) based on $0.11 per kWh
• Ballast bypass (Type B) wiring eliminates costs associated with
replacing ballasts
• Total system >140 LPW

VERSATILE UPDATE
• Omni-directional lamp utilizes existing fixture optics
• Flexible use-one lamp can be used in many types of fixtures
-Universal burn
-Designed to match HID ANSI profile
• Rated for open and enclosed fixtures
• Temperature rating for -20°C to 50°C
• Exceeding temperature ratings will shorten life of lamp
• Type B eliminates the need to check ballast compatibility

LONG LIFE
• 2.5X Longer Life
(50,000 hr LED vs 20,000 hr HID)
• 50,000 hour rated life (L70)
• 50,000 hour rated fan life (B10)
• High-Performance fan ensures rated lamp life

COLOR RENDERING
• Available with a CRI of 70

COLOR TEMPERATURE
• Available in 4000K and 5000K
• Instant On/Brightness

ENVIRONMENTALLY CONSCIOUS
• These lamps are energy efficient and are compliant with
material restriction requirements of RoHS

GE QUALITY AND RELIABILITY
• 5-year limited warranty
• Tether Kit and in-line fuse included
• Robust construction with metal components
• Driver with internal fuse provides 6 kV surge protection
