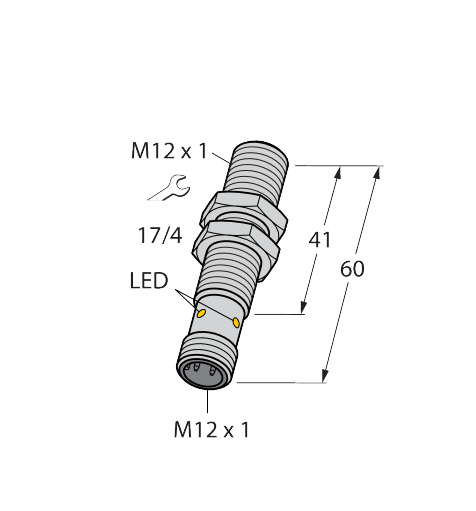

Turck BI6-EG12FE-AP6X-H1141 inductive sensor in a threaded M12 housing for non-contact detection of metal parts. The stainless steel sensing face withstands washdown and mechanical stress.
• Rated switching distance 6 mm; flush mounting
• DC 3-wire, 10 to 30V DC; PNP NO output; switching frequency 0.6 kHz
• Connection: M12 Connector
• Housing: stainless steel 1.4305 (AISI 303), all-metal, pressure resistant
• Protection IP68, IP69K; ambient temperature -25 to +70°C
• Turck ident no. 4614706
