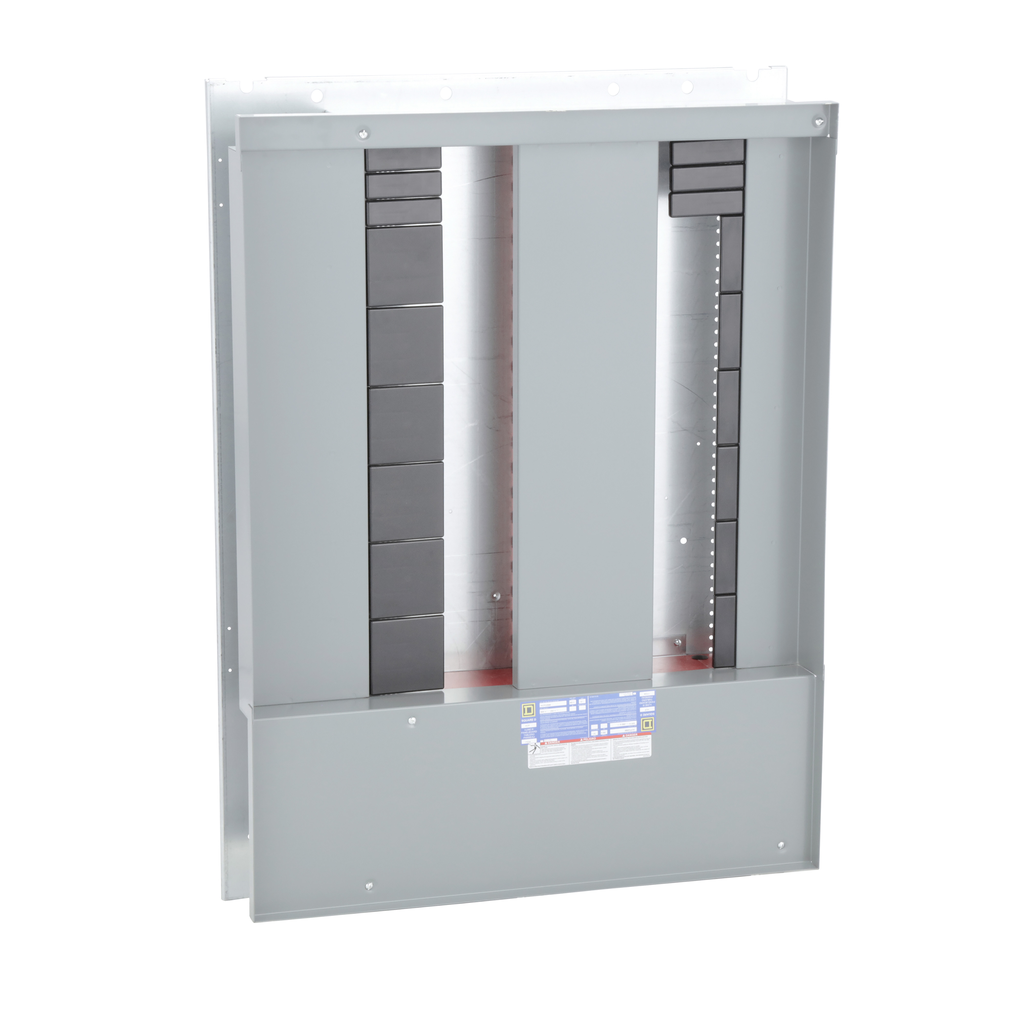

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCP I-Line panelboard interior is a 800A and has main lugs. The dimesnions are 68 in (H), 42 in (W). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.
Read more
Specification & Document
Manufacturer Product Code
21319
Amperage
800A
Brand
[{"en":"I-Line Panel Board SE","fr":""}]
Bus Material
[{"en":"Copper","fr":"Cuivre"}]
Breaker Mounting/Termination Type
[{"en":"I-Line","fr":"I-Line"}]
