UL/CSA FUSE HOLDERS USCC - Class CC


Mersen UltraSafe modular fuseholders introduce a new level of safety for
class CC and midget fuses up to 30 amperes.
UltraSafe fuseholders qualify as "finger safe" under IEC and DIN standards
to an IP20 grade of protection, including fuse changing (with the flick of a
finger).

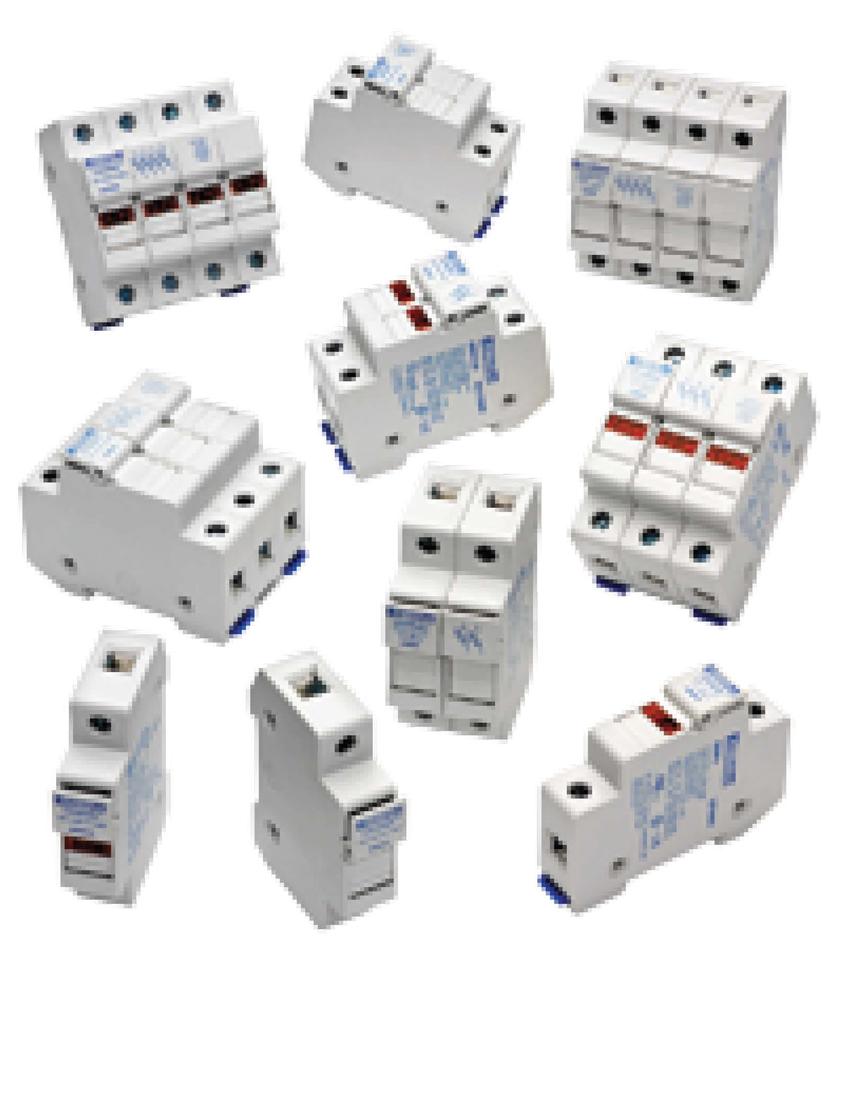

UltraSafe fuseholders are available in 1, 2, 3 or 4 poles, with or without
visual blown-fuse indicators in each pole.
Multiple poles can be assembled in the field by ordering and installing
pin-tie handles.
UltraSafe fuseholders save up to 15% mounting space and any combination
can be snapped onto 35mm DIN rail for extra savings in panel building time.

Choose class CC fuses for Type "2" no-damage protection, one of the safest
protection packages in the industry.
The UltraSafe body material is tough and durable polyamide, with
exceptional insulating properties.
