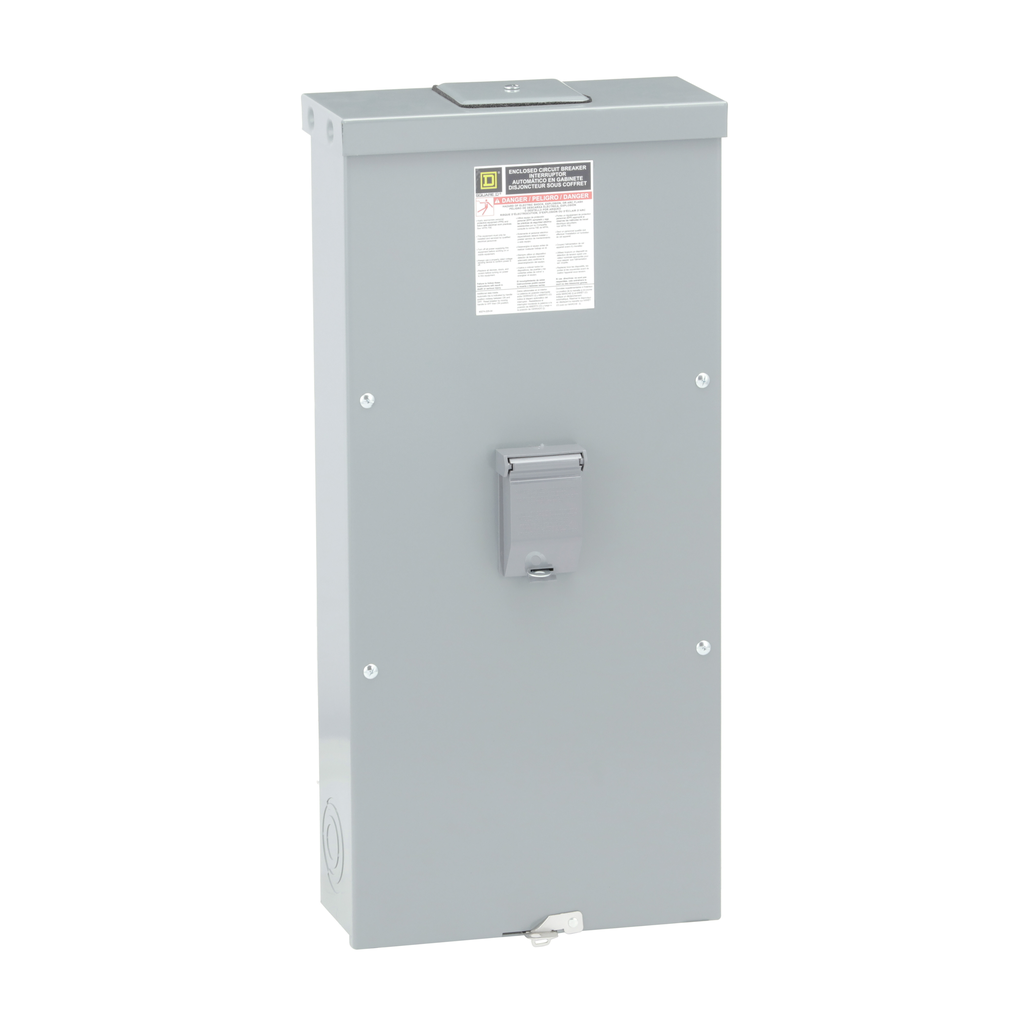

The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted. The enclosures' maximum short circuit ratings are 25 kAIR at 600 Vac, 65 kAIR at 480 Vac, 125 kAIR at 240 Vac and 20 kA at 250 Vdc unless otherwise noted. Enclosures accept 100% rated circuit breakers [8]. The enclosures are not compatible with earth-leakage or ground-fault modules.
Read more
Specification & Document
Manufacturer Product Code
60786
Amperage
15-250
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Molded Case Large Frame","fr":"Grand Cadre Boîtier Moulé"}]
Manufacturer
SCHNEIDER ELECTRIC
Manufacturer Product Code
60786
Amperage
15-250
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Molded Case Large Frame","fr":"Grand Cadre Boîtier Moulé"}]
Manufacturer
SCHNEIDER ELECTRIC
Manufacturer Product Code
60786
Amperage
15-250
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Molded Case Large Frame","fr":"Grand Cadre Boîtier Moulé"}]
