PVC Insulated Nylon Covered Cables

Description

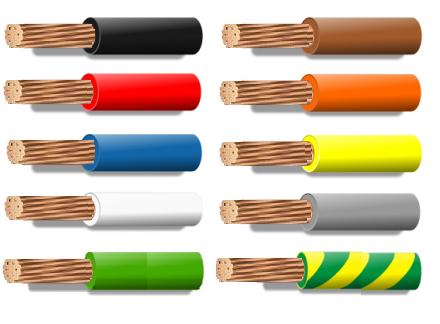

Single copper conductor with thin wall PVC insulation and nylon covering with FT1 rating. Rated 600 volts. LEAD FREE.

Application
General purpose building wire for installation as exposed or concealed wiring and in raceways (except cable trays) in dry or damp locations.
Minimum recommended installation temperature minus 10°C (with suitable handling procedures).
Maximum conductor temperature 90°C dry, 75°C in wet locations, and 60°C when exposed to oil.
Approved for use with ceiling fixtures.
Reduced friction construction in sizes 6 AWG and larger.

Harmonized Product Print Legend:
E53058 F INSTAGLIDE® 2/0 AWG (67.4mm²) (UL) THHN OR THWN-2 OR GR II, OR MTW 600 VOLT VW-1 CT USE MADE IN CANADA LL 23462 2/0 AWG CSA/, ACNOR T90 / TWN75 NYLON FT1

Construction characteristics
Conductor material Copper

Electrical characteristics
Maximum operating voltage 600 V

Usage characteristics
Maximum operating temperature 90 °C

National CSA C22.2 N° 75, CSA File #LL23462 Class 5832 02
U.L. Standard #83 - U.L. Approval # E70347

T90 / TWN75 is NOT sunlight resistant.

**For 3-wire 120/240 and 120/208V residential services or sub-services, the allowable ampacity for #2/0 AWG copper shall be 200 amperes. In these cases, the 5% adjustment per C.E. Code Rule 8-106(1) cannot be applied.

#Based on not more than 3 copper conductors in raceway or cable.
