INSTAGLIDE® RW90 (–40°C) EXELENE® XLPE Service Entrance and Branch Circuit Wire

CSA File #LL23462 Class 5832 03

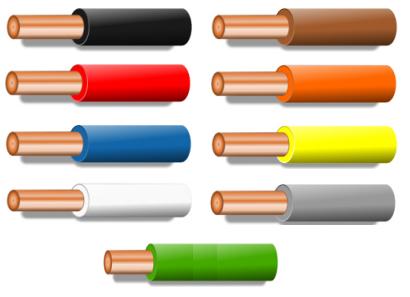

Single solid or compressed stranded copper, or compact ACM aluminum conductor with low temperature moisture resisting EXELENE® cross-linked polyethylene (XLPE) insulation. RoHS compliant.

Application
For open wiring and raceways (except cabletroughs and ventilated flexible cableway) in dry or wet locations.
For exposed wiring where exposed to weather with sunlight resistant insulation.
Standard Black 6 AWG and larger is sunlight resistant and marked "SR"; coloured insulation is NOT.
Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
Maximum conductor temperature 90°C.
Approved for use with ceiling fixtures. Nexans INSTAGLIDE® reduced friction construction in black sizes 6 AWG and larger.

Non-jacketed RW-90 (XLPE) cables are not suitable for installation in vaults and switchrooms under the conditions of C.E.
Code Part 1 Rule 12-2202(3). Suitable flame retardant jacketed cables are available on request.
