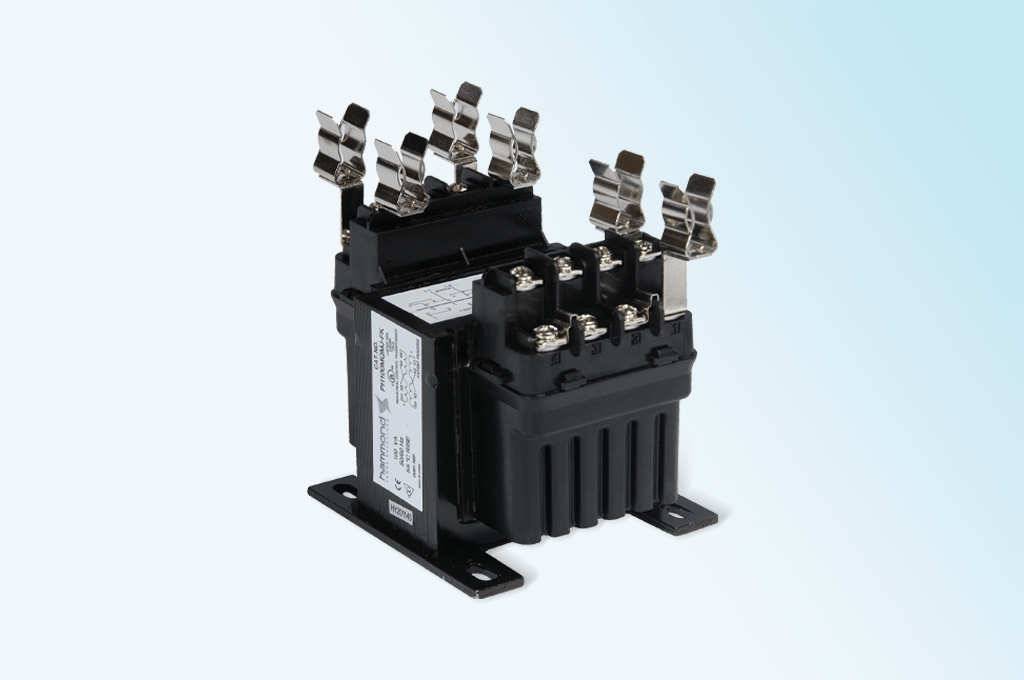

The PH100QR is a 100 VA machine-tool rated industrial control transformer from the Hammond Power Solutions Imperator (PH) series. It steps a 240 x 480 V primary down to a 12 x 24 V secondary to supply low-voltage control circuits in panels and machinery.
• 100 VA rating, 50/60 Hz; secondary output 8.33 A at 12 V or 4.17 A at 24 V
• Primary 240 x 480 V (also 230 x 460 / 220 x 440 V)
• 600 V class, 130°C insulation system
• Accepts optional primary fuse kit PFK1; secondary fuse kits available
• cULus listed, CE marked, RoHS compliant
