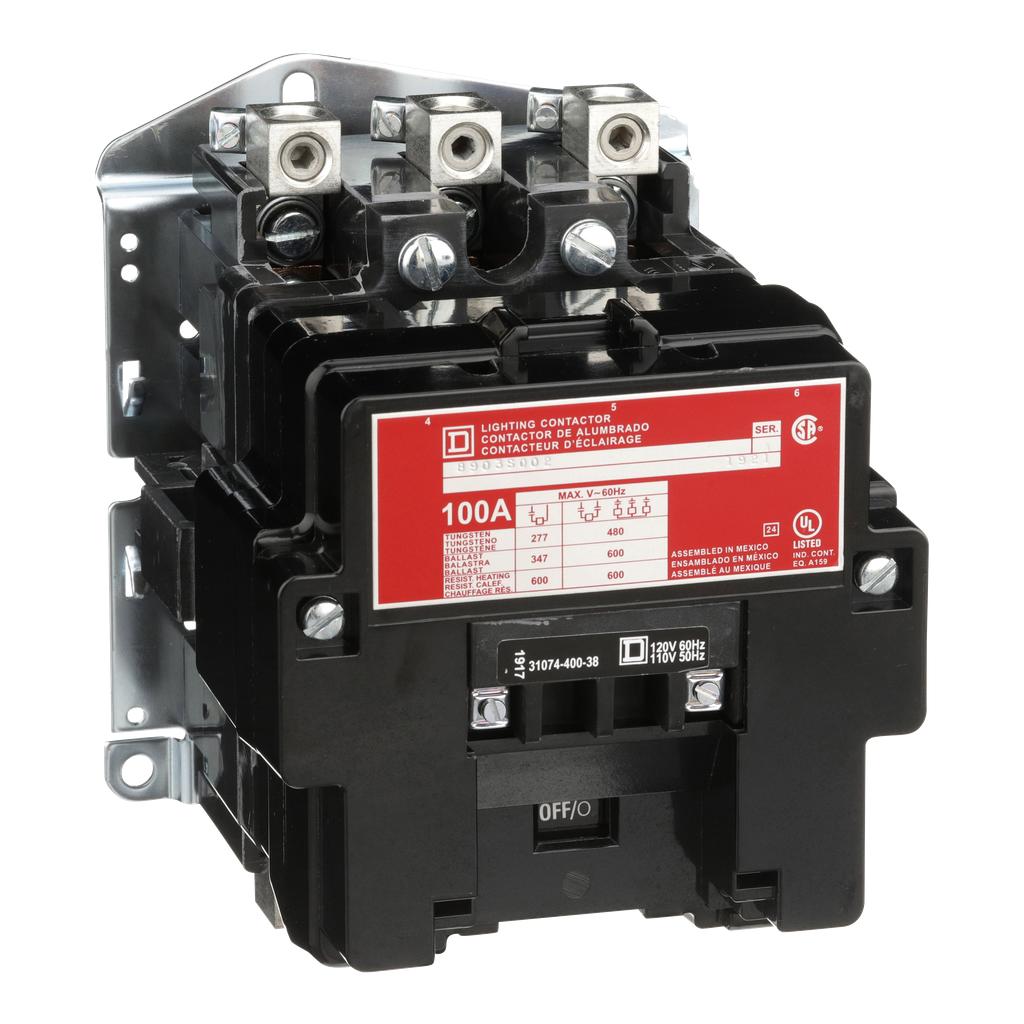

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 100 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 7.26 inches tall, 5.45 inches wide and 6.50 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Read more
Specification & Document
Manufacturer Product Code
61942
Amperage
100
Coil Voltage
120VAC
Device Type
[{"en":"Lighting Contactor","fr":"Contacteur d'éclairage"}]
Manufacturer
SCHNEIDER ELECTRIC
Poles
3
Voltage
600
Manufacturer Product Code
61942
Amperage
100
Coil Voltage
120VAC
Device Type
[{"en":"Lighting Contactor","fr":"Contacteur d'éclairage"}]
Manufacturer
SCHNEIDER ELECTRIC
Poles
3
Voltage
600
Manufacturer Product Code
61942
Amperage
100
Coil Voltage
120VAC
Device Type
[{"en":"Lighting Contactor","fr":"Contacteur d'éclairage"}]
