Catalog Number: ABRH075-300
Product ID: 7TBD012500R0021
UPC Number: 78620988247
Status: Active
Replacement Catalog: CMACS03M-L

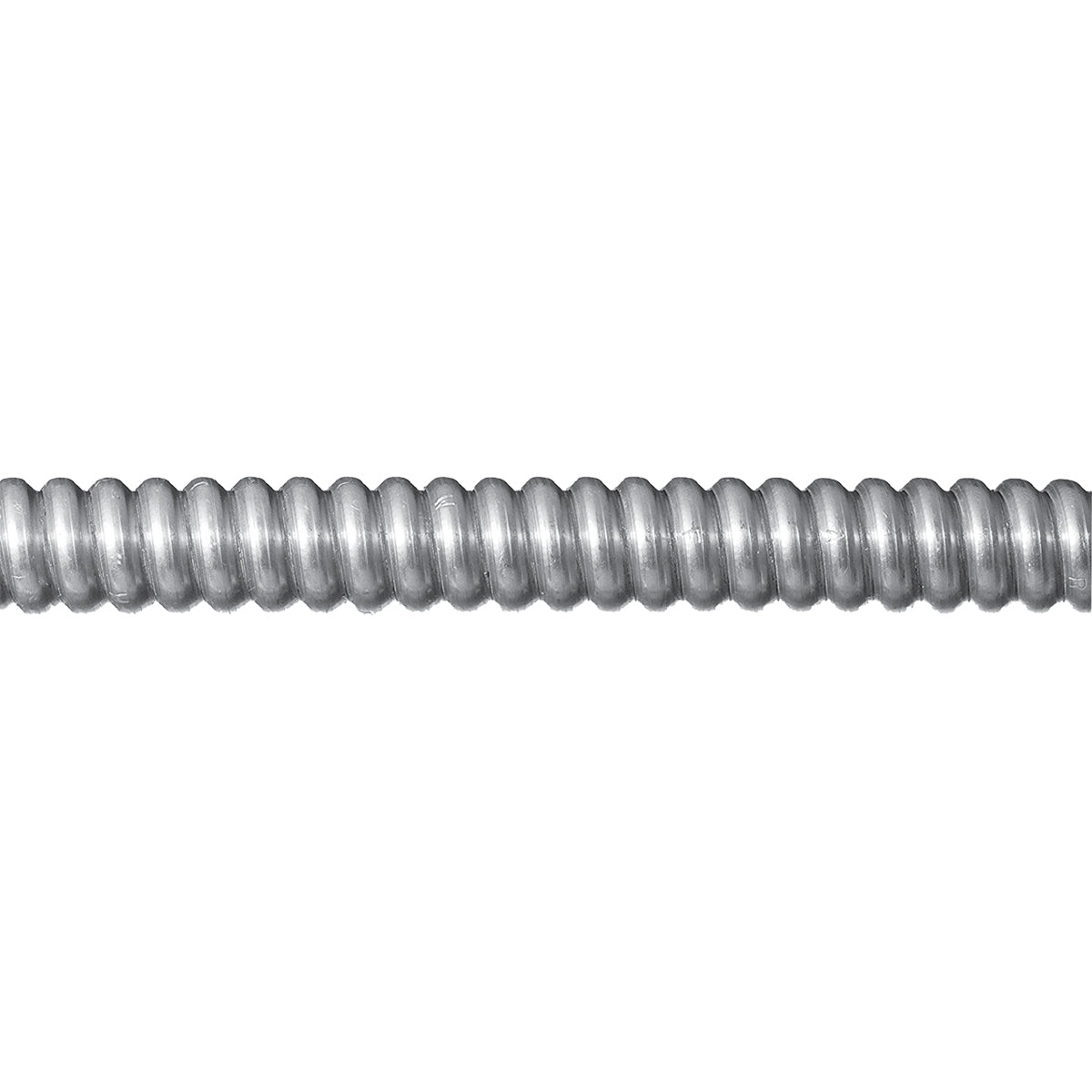

3/4 Inch Non-jacketed Flexible metal conduit, Aluminum, 300 Meters
North American Specifications (UNSPSC)
UNSPSC 39131706 Electrical conduit
IGCC 5535 Electrical conduit
Brand Name T&B Industrial Fitting
Type Flexible Conduit - Aluminum Core
Special Features The Profile and Helical Shape Allow it to Withstand
Substantial Impact and Crushing Forces
Application Intended as a Metal Raceway for Wires and Cable Where CSA Certification is Required. Suitable
for Use with Connectors Intended for FMC(Flexible
Metal Conduit)
Standard CSA
Trade Size 3/4 Inch
Outside Diameter 1.045 Inch
Inside Diameter 0.812 Inch
Length 300 m
Radius 4 Inch
Material Aluminum

European Specifications (ETIM)
ETIM EC001179 Protective metallic hose
Nominal size in inch 3/4 inch
Outer diameter 28.07mm
Inner diameter 20.62mm
Material Aluminium
Sealing No sealing
Colour Metallic
With approval according to UL N
Approved according to CSA Y

Packaging
Outer Quantity 300
Outer Dimensions (inches) 1x1x1
Weight Uom 92.15 lbs. per 100
