Catalog Number: TY275M
Product ID: 7TAG009330R0009
UPC Number: 78621087079
EAN Number: 05414363063094
Status: Active

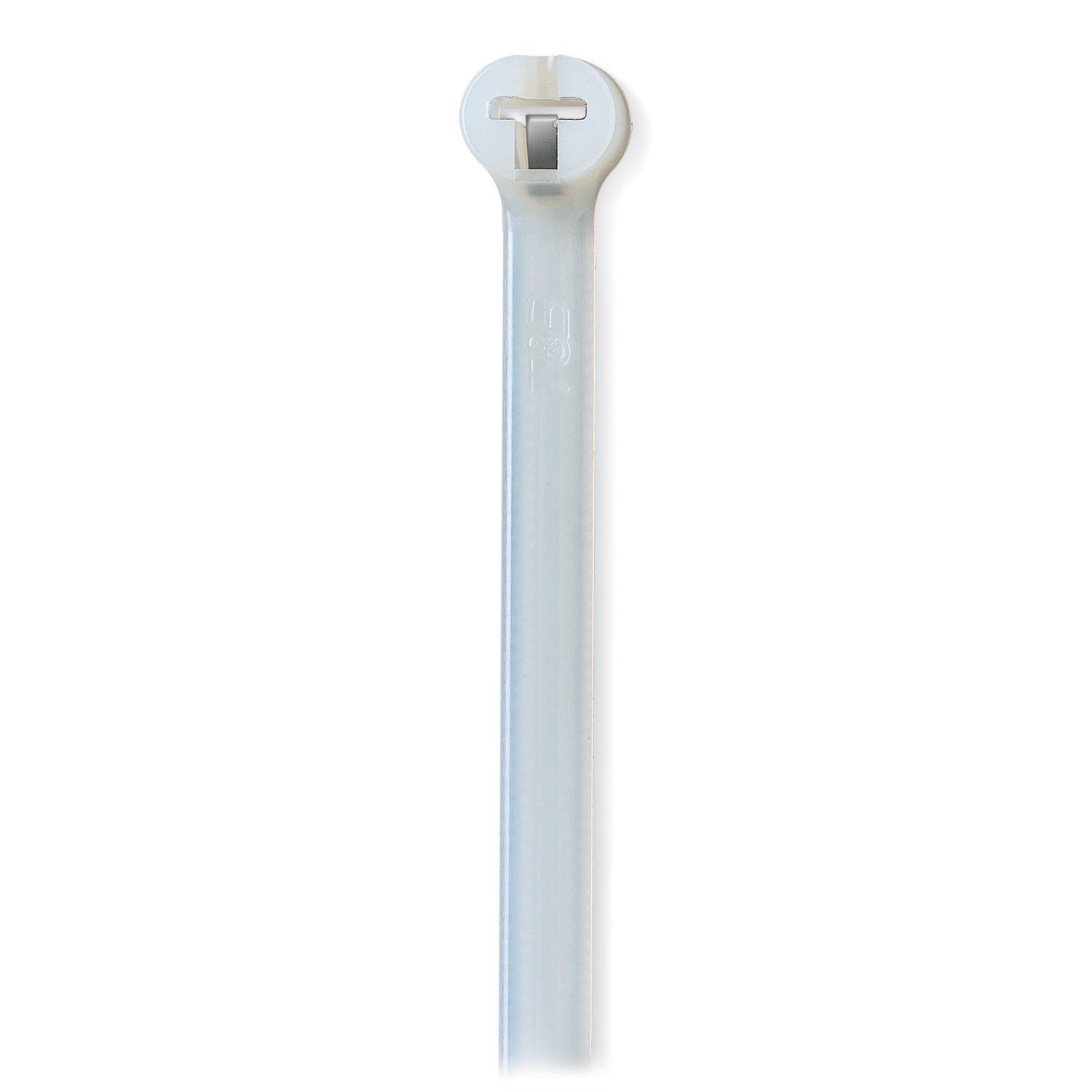

Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum or as a Flexible Cable and Conduit Support, Length of 457mm (18.0 Inches), Width of 7.0mm (0.27 Inches), Thickness of 1.65mm (0.06 Inches), Tensile Strength Rating of 530 Newtons (120 Pounds), Bulk Pack • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
• Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
• The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
• Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
• Application Tools: ERG120, WT197

North American Specifications (UNSPSC)
UNSPSC 39121703 Cable ties
IGCC 5037 Cable Ties & Wraps
Brand Name Ty-Rap
Type Standard
Special Features Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
Standard UL E49405
Width 0.27 in 7 mm
Length 18 in 457 mm
Thickness 0.06 Inch/1.65mm
Bundle Diameter 0.236 Inch/6mm-5.0 Inches/127mm
Material Nylon/Polyamide 6.6
Color Natural
Lock Mechanism Stainless Steel Barb
Tensile Strength 120 Pounds/530 Newtons

European Specifications (ETIM)
ETIM EC000046 Cable tie
Band width 7mm
Length belt/tape/tie 457mm
Tie thickness 1.65mm
Max. bundle diameter 127mm
Min. holding force 530N
Operating temperature -40-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Natural colour
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval N
UL approval Y

Packaging
Inner Dimensions (inches) xx
Outer Quantity 500
Outer Dimensions (inches) 22.1x9.2x7.6
Weight Uom 1.5 lbs. per 100
