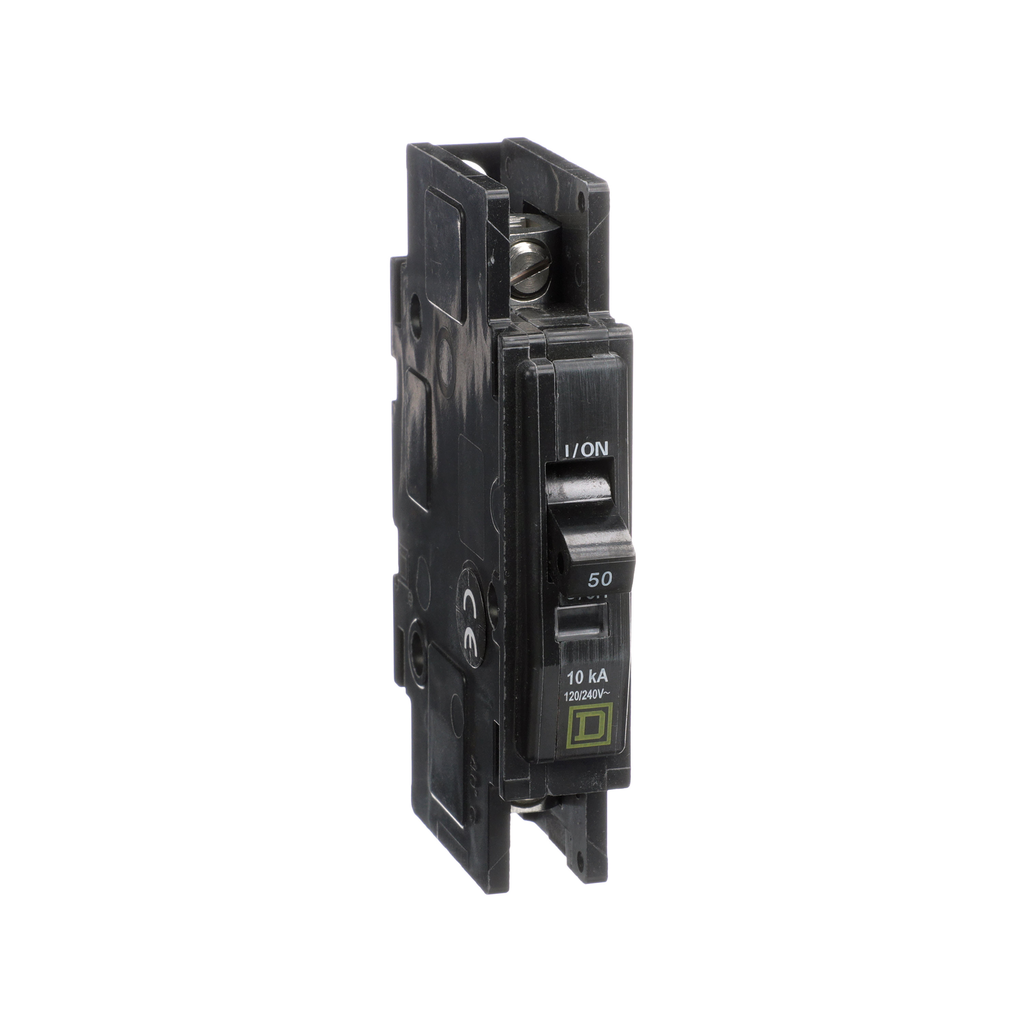

Main
Ampere Rating 50A
Approvals UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated
60947-2
Catalog Reference Number 0720CT9401
Circuit Breaker Type Standard
Depth 2.98 Inches
For Use With OEM Panels and Enclosures
HACR Rated Yes
Height 4.05 Inches
Marketing Trade Name QOU
Mounting Type Flush, Surface or DIN Rail (35mm)
Number of Poles 1-Pole
Short Circuit Current Rating 5kA@277VAC - 10kA@120/240VAC
Terminal Type Line: Box Lug - Load: Box Lug
Type QOU
Voltage Rating 120/240VAC
Width 0.75 Inches
Wire Size #14-2 AWG(Al/Cu)
