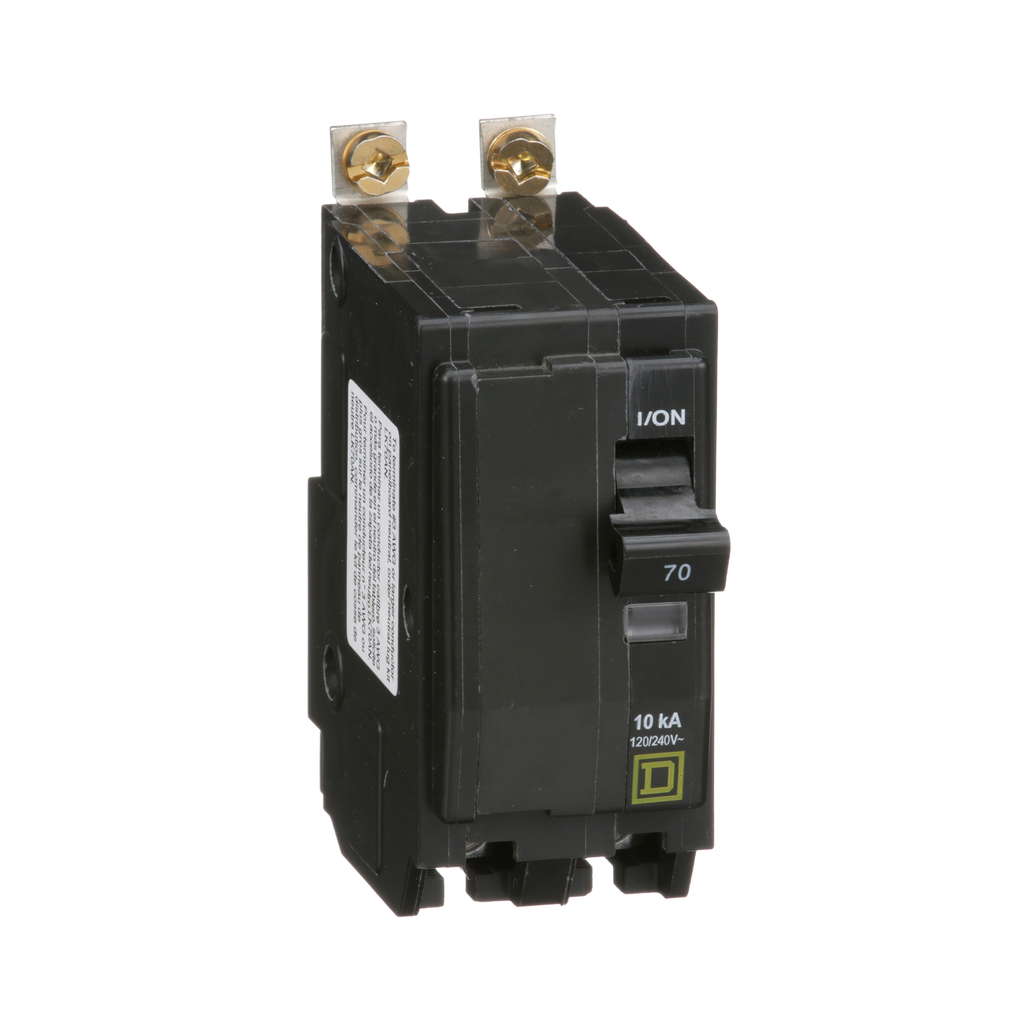

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB270, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed CSA certified They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Read more
Specification & Document
Manufacturer Product Code
41704
Amperage
70
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QOB
Breaker Mounting/Termination Type
[{"en":"Bolt On","fr":"Vissé"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Interrupting Rating
10KA
Manufacturer
SCHNEIDER ELECTRIC
Poles
2
Voltage
120-240
Manufacturer Product Code
41704
Amperage
70
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QOB
Breaker Mounting/Termination Type
[{"en":"Bolt On","fr":"Vissé"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Interrupting Rating
10KA
Manufacturer
SCHNEIDER ELECTRIC
Poles
2
Voltage
120-240
Manufacturer Product Code
41704
Amperage
70
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QOB
Breaker Mounting/Termination Type
[{"en":"Bolt On","fr":"Vissé"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
