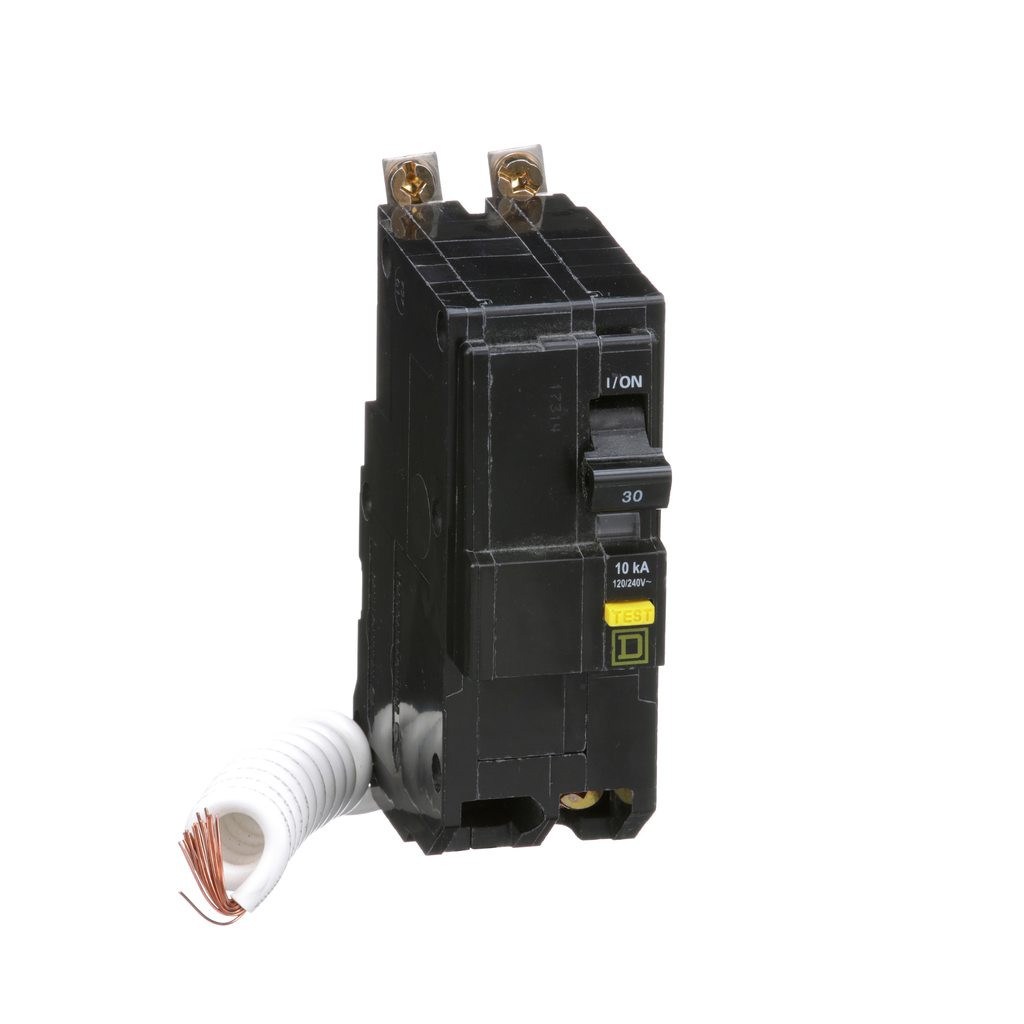

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB230GFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed CSA certified This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Read more
Specification & Document
Manufacturer Product Code
56303
Amperage
30
Brand
[{"en":"Plug-on and Bolt on breakers SE","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QOB
Breaker Mounting/Termination Type
[{"en":"Bolt On","fr":"Vissé"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Interrupting Rating
10KA
Manufacturer
SCHNEIDER ELECTRIC
Poles
2
Voltage
120-240
Manufacturer Product Code
56303
Amperage
30
Brand
[{"en":"Plug-on and Bolt on breakers SE","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QOB
Breaker Mounting/Termination Type
[{"en":"Bolt On","fr":"Vissé"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Interrupting Rating
10KA
Manufacturer
SCHNEIDER ELECTRIC
Poles
2
Voltage
120-240
Manufacturer Product Code
56303
Amperage
30
Brand
[{"en":"Plug-on and Bolt on breakers SE","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QOB
Breaker Mounting/Termination Type
[{"en":"Bolt On","fr":"Vissé"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
