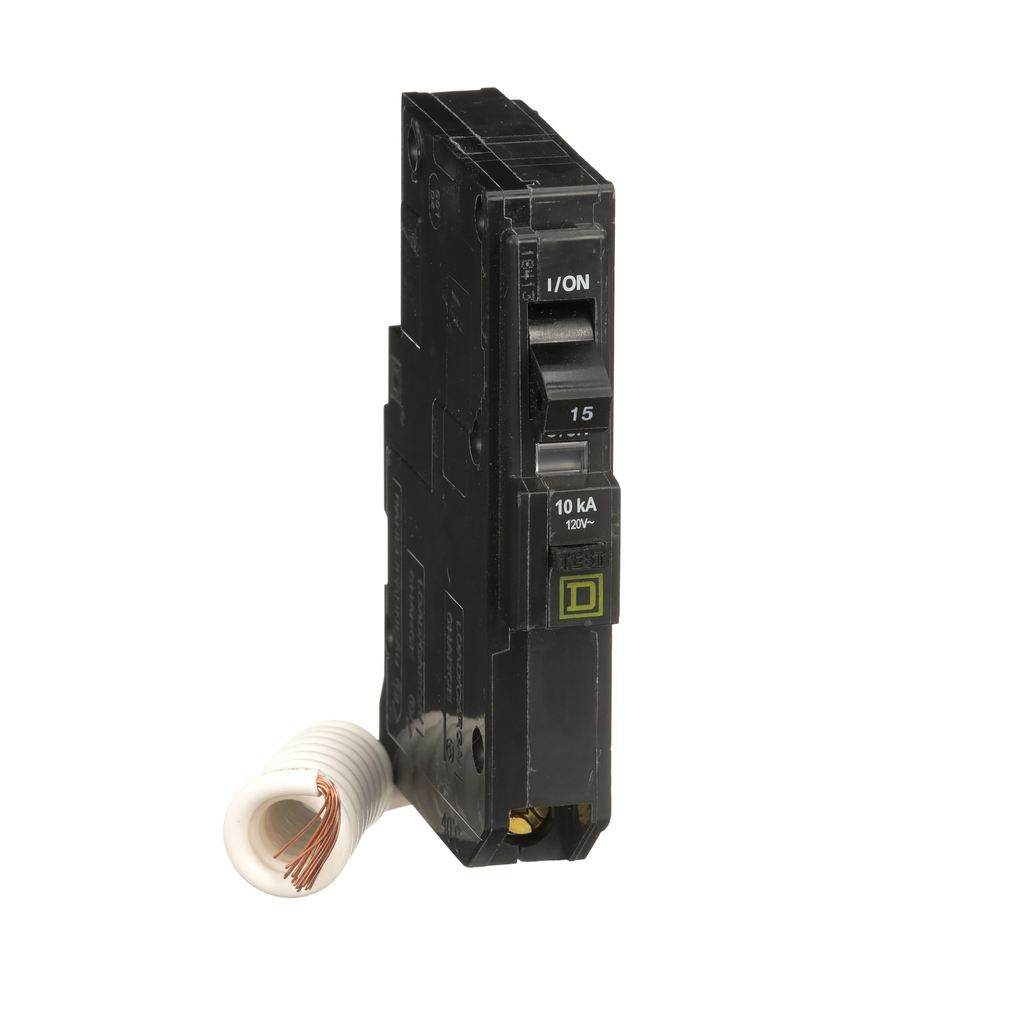

Square D™ QO™ and QOB Miniature Circuit Breakers, QO115EPD, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Are designed to provide ground fault protection of equipment. UL listed CSA certified This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Read more
Specification & Document
Manufacturer Product Code
76378
Amperage
15
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QO
Breaker Mounting/Termination Type
[{"en":"Plug In","fr":"Branchable"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Interrupting Rating
10KA
Manufacturer
SCHNEIDER ELECTRIC
Poles
1
Voltage
120-240
Manufacturer Product Code
76378
Amperage
15
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QO
Breaker Mounting/Termination Type
[{"en":"Plug In","fr":"Branchable"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Interrupting Rating
10KA
Manufacturer
SCHNEIDER ELECTRIC
Poles
1
Voltage
120-240
Manufacturer Product Code
76378
Amperage
15
Brand
[{"en":"Square D","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
QO
Breaker Mounting/Termination Type
[{"en":"Plug In","fr":"Branchable"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
